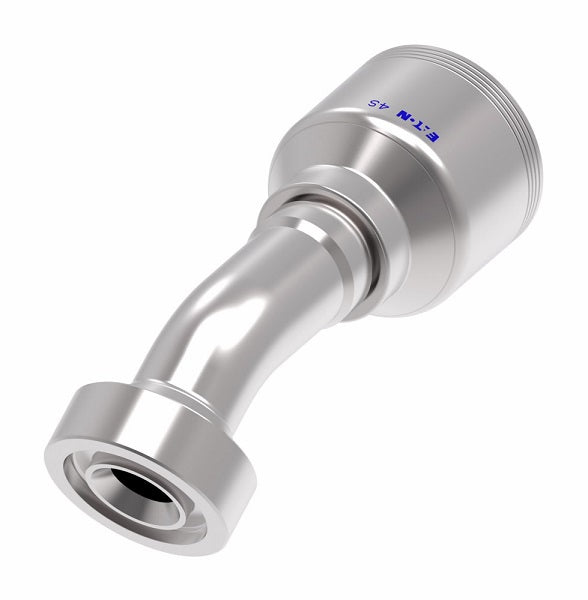

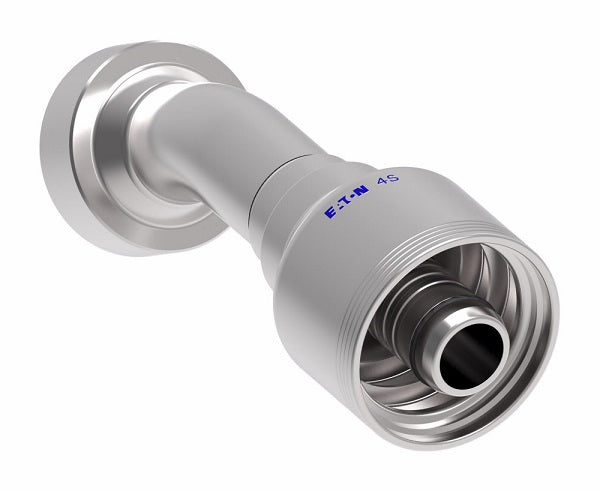

4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Name: 4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16CTF16 Danfoss
Price: 134.22 USD
Availability: InStock

$134.22 - $134.22

$134.22

$134.22 - $134.22

$134.22

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTF) - 30° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16CTF16 Danfoss
Shape (Orientation):	30 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTF12	-12	19	-12	1.63"	4.89"	3.46"	0.56"	0.75"
4S16CTF16	-16	25	-16	1.87"	5.58"	4.02"	0.76"	0.85"
4S20CTF16	-20	25	-16	2.13"	6.37"	4.80"	0.76"	1.00"
4S24CTF24	-24	38	-24	2.50"	8.85"	5.78"	1.22"	1.09"
4S32CTF32	-32	51	-32	3.13"	10.52"	7.45"	1.66"	1.37"
