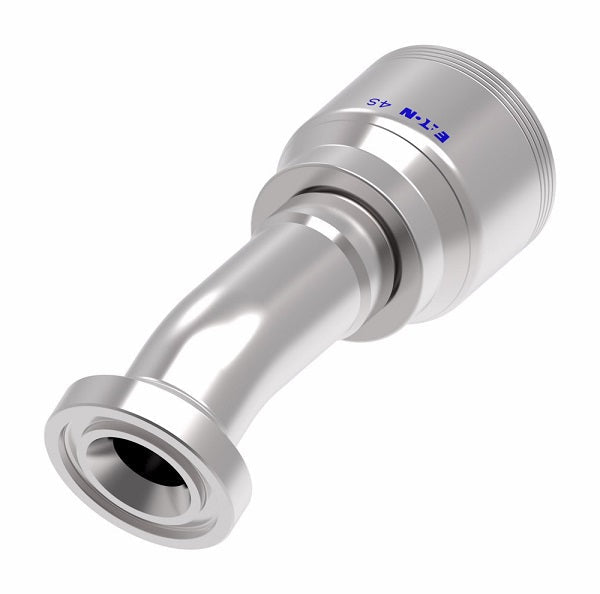

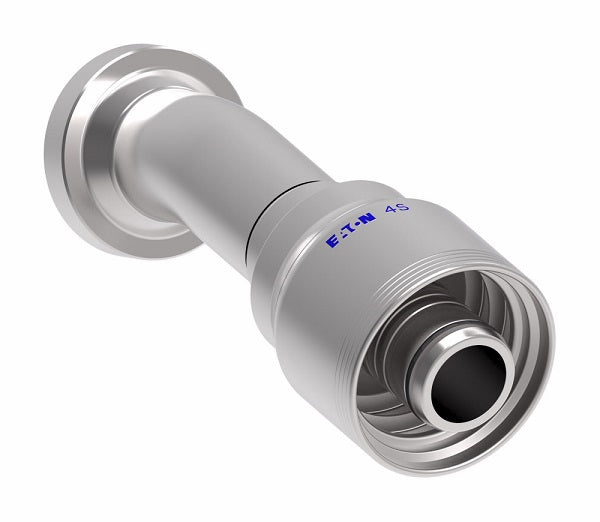

4S16FHD16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 22.5° Elbow (FHD) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

4S16FHD16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 22.5° Elbow (FHD) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

Name: 4S16FHD16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 22.5° Elbow (FHD) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16FHD16 Danfoss
Price: 130.36 USD
Availability: InStock

$130.36 - $130.36

$130.36

$130.36 - $130.36

$130.36

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16FHD16 Danfoss
Shape (Orientation):	22.5 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	EØ	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	EØ	H
4S16FHD12	-16	-	-12	-	-	-	-	-
4S16FHD16	-16	25	-16	1.88"	5.51"	3.94"	0.76"	0.53"
4S20FHD16	-20	25	-16	2.13"	6.33"	4.77"	0.76"	0.64"
4S32FHD32	-32	51	-32	3.13"	10.61"	7.54"	1.66"	0.93"
