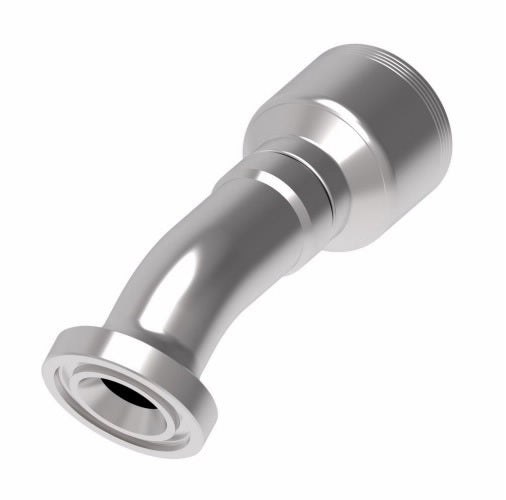

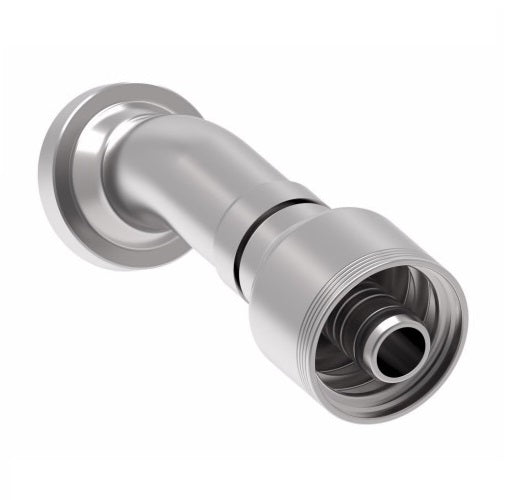

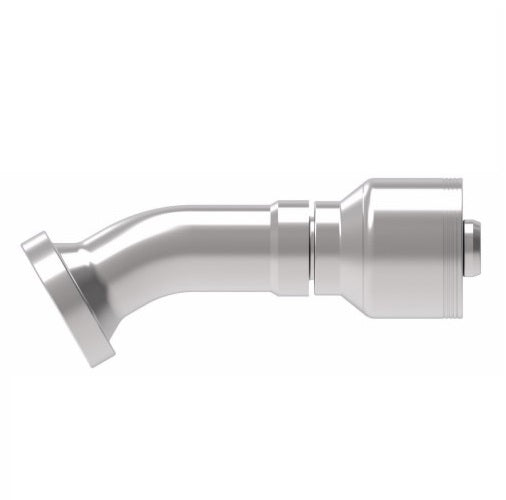

4S16FHF12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange (FHF) 30° Elbow Crimp Fitting | -16 Code 62 Flange x -12 Hose Barb | Steel

4S16FHF12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange (FHF) 30° Elbow Crimp Fitting | -16 Code 62 Flange x -12 Hose Barb | Steel

Name: 4S16FHF12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange (FHF) 30° Elbow Crimp Fitting | -16 Code 62 Flange x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16FHF12 Danfoss
Price: 108.88 USD
Availability: InStock

$108.88 - $108.88

$108.88

$108.88 - $108.88

$108.88

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHF) - 30° Elbow

Specifications for Variant SKU: 4S16FHF12 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	1in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	EØ	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	EØ	H
4S16FHF12	-16	-	-12	-	-	-	-	-
4S24FHF20	-24	31	-20	2.50"	7.58"	5.42"	0.99"	1.06"
4S32FHF32	-32	51	-32	3.13"	10.47"	7.39"	1.66"	1.34"
