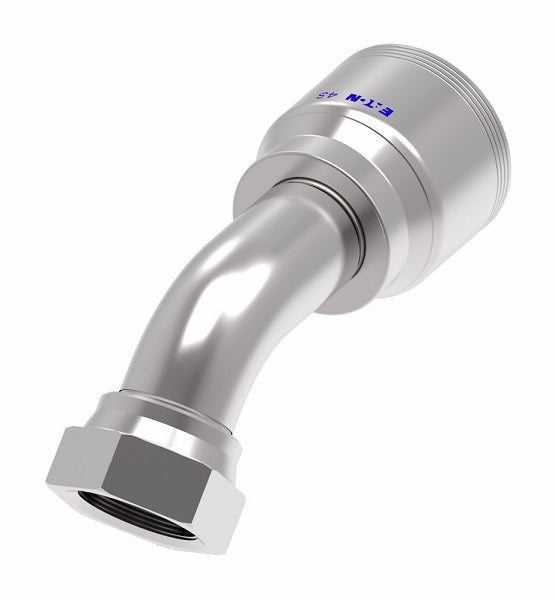

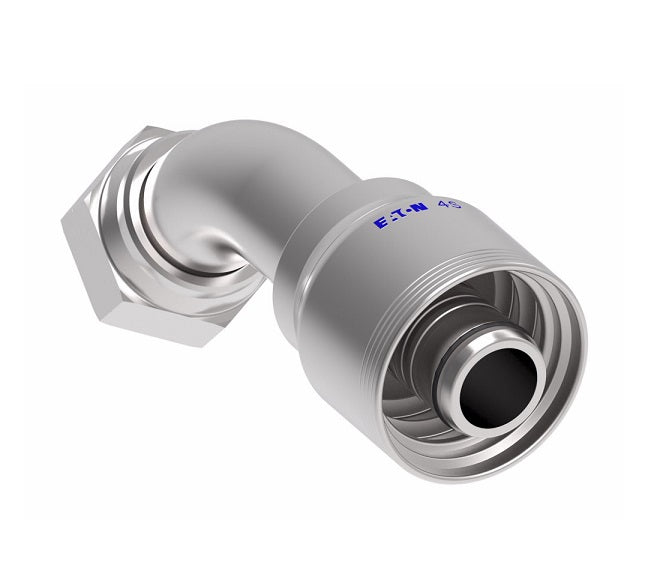

4S20BFA16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFA16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFA16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFA16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel

4S20BFA16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel

$216.74 - $216.74
$216.74
$216.74 - $216.74
$216.74

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20BFA16 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Female BSPP, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D EØ H Hex 1
Dash Size DN Dash Size
4S6BFA6 -06 - -06 - - - - - -
4S8BFA8 -08 - -08 G 1/2 3.60" 2.43" 0.38" 0.98" 1.06"
4S12BFA12 -12 19 -12 G 3/4" 4.42" 2.99" 0.56" 1.02" 32mm
4S16BFA12 -16 19 -12 G 1" 4.56" 3.13" 0.56" 1.18" 41mm
4S16BFA16 -16 25 -16 G 1" 5.13" 3.57" 0.76" 1.18" 41mm
4S20BFA16 -20 25 -16 G 1-1/4" 5.24" 3.68" 0.76" 1.34" 50mm
4S20BFA20 -20 31 -20 G 1-1/4" 5.89" 3.90" 0.99" 1.34" 50mm
4S24BFA24 -24 38 -24 G 1-1/2" 8.20" 5.13" 1.22" 1.67" 55mm
4S32BFA32 -32 51 -32 G 2" 9.78" 6.71" 1.66" 2.13" 70mm
