Name: 4S20CTB20 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 90° Elbow (CTB) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S20CTB20 Danfoss
Price: 174.38 USD
Availability: InStock

$174.38 - $174.38

$174.38

$174.38 - $174.38

$174.38

Aeroquip® by Danfoss

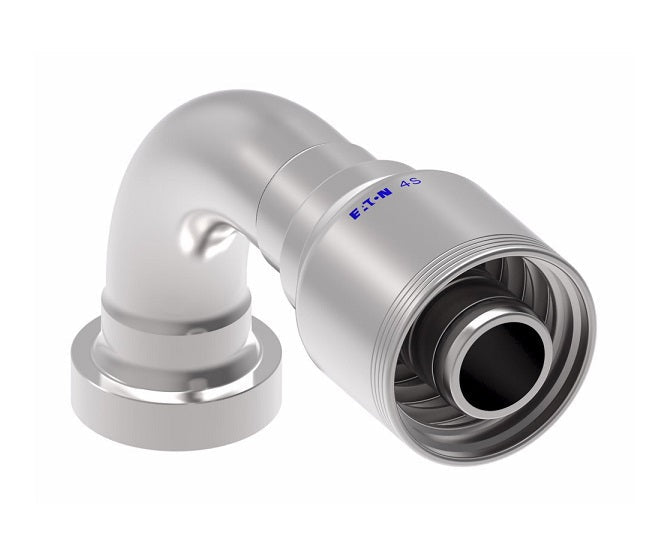

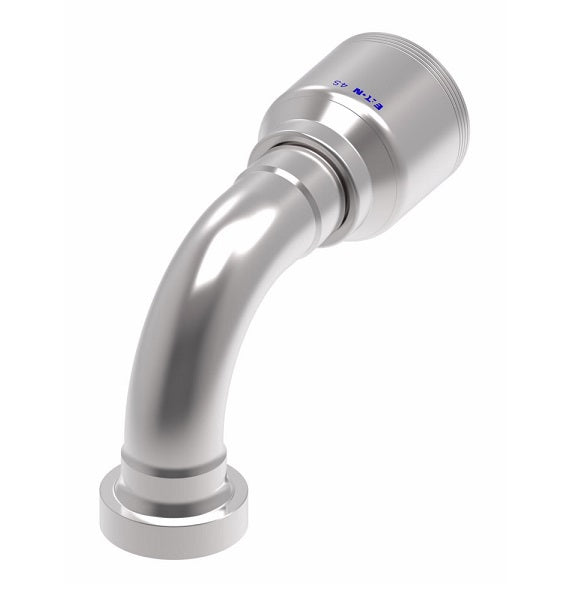

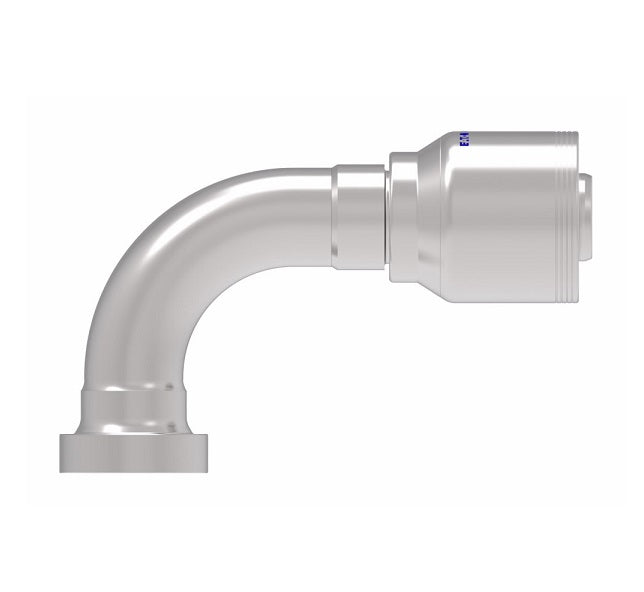

4 Wire 4S CAT Flange Crimp Fitting (CTB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S20CTB20 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in CAT Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTB12	-12	19	-12	1.63"	4.27"	2.85"	0.56"	2.54"
4S16CTB12	-16	19	-12	1.87"	4.83"	3.41"	0.56"	2.98"
4S16CTB16	-16	25	-16	1.87"	4.96"	3.39"	0.76"	2.98"
4S20CTB16	-20	25	-16	2.13"	5.72"	4.15"	0.76"	3.66"
4S20CTB20	-20	31	-20	2.13"	6.36"	4.19"	0.99"	3.66"
4S24CTB24	-24	38	-24	2.50"	8.22"	5.15"	1.22"	4.16"
4S32CTB32	-32	51	-32	3.13"	9.85"	6.78"	1.66"	5.50"
