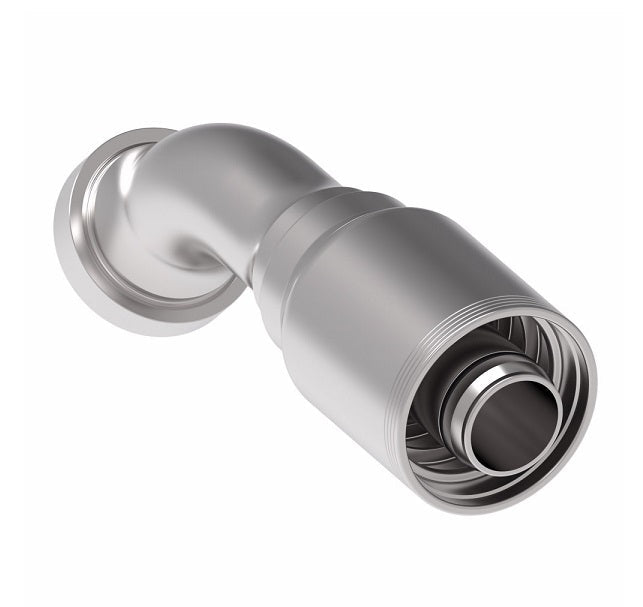

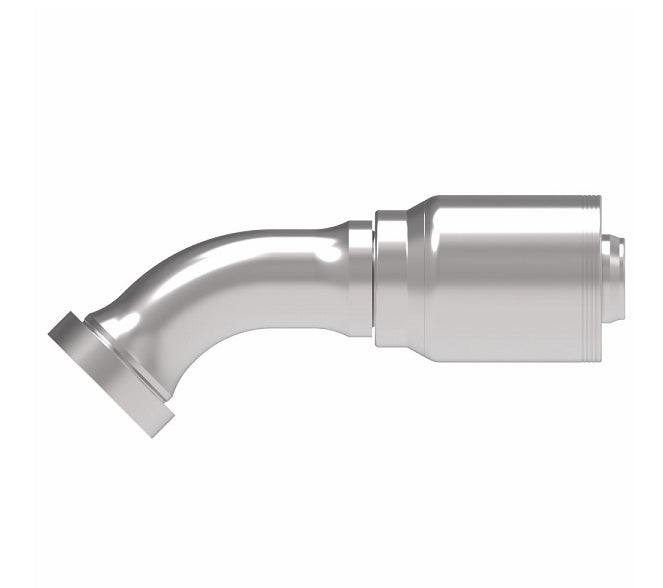

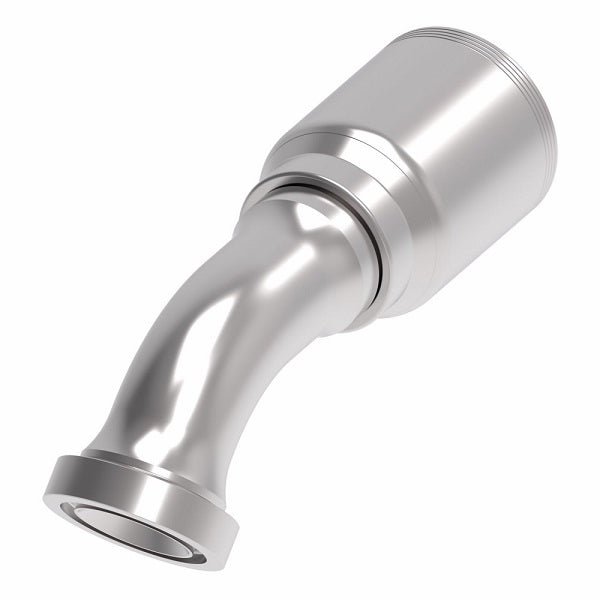

4S24CTA24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTA24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTA24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

4S24CTA24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

$268.85 - $268.85
$268.85
$268.85 - $268.85
$268.85

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24CTA24 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTA12 -12 19 -12 1.63" 4.63" 3.21" 0.56" 1.22"
4S16CTA12 -16 19 -12 1.87" 5.17" 3.74" 0.56" 1.39"
4S16CTA16 -16 25 -16 1.87" 5.29" 3.72" 0.76" 1.39"
4S20CTA16 -20 25 -16 2.13" 6.02" 4.46" 0.76" 1.65"
4S20CTA20 -20 31 -20 2.13" 6.67" 4.50" 0.99" 1.65"
4S24CTA24 -24 38 -24 2.50" 8.47" 5.40" 1.22" 1.82"
4S32CTA32 -32 51 -32 3.13" 10.04" 6.97" 1.66" 1.31"
