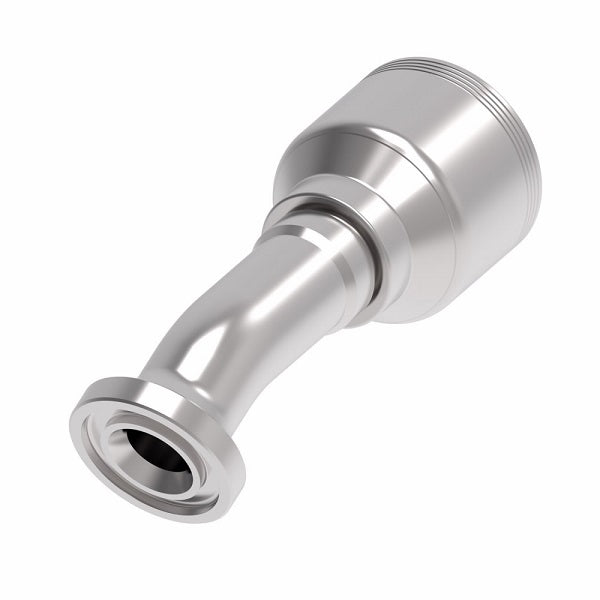

4S24FLD20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 22.5° Elbow (FLD) Crimp Fitting | -24 Code 61 Flange x -20 Hose Barb | Steel
4S24FLD20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 22.5° Elbow (FLD) Crimp Fitting | -24 Code 61 Flange x -20 Hose Barb | Steel
4S24FLD20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 22.5° Elbow (FLD) Crimp Fitting | -24 Code 61 Flange x -20 Hose Barb | Steel

4S24FLD20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 22.5° Elbow (FLD) Crimp Fitting | -24 Code 61 Flange x -20 Hose Barb | Steel

$206.10 - $206.10
$206.10
$206.10 - $206.10
$206.10

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24FLD20 Danfoss
Shape (Orientation): 22.5 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FLD8 -08 - -08 1.19" 3.28" 2.20" 0.36" 0.36"
4S12FLD8 -12 - -08 1.50" 3.87" 2.80" 0.37" 0.44"
4S12FLD12 -12 19 -12 1.50" 4.78" 3.35" 0.56" 0.46"
4S16FLD12 -16 25 -12 1.75" 5.38" 3.96" 0.56" 0.53"
4S16FLD16 -16 25 -16 1.75" 5.50" 3.94" 0.76" 0.53"
4S20FLD16 -20 25 -16 2.00" 6.33" 4.77" 0.76" 0.64"
4S20FLD20 -20 31 -20 2.00" 6.98" 4.81" 0.99" 0.64"
4S24FLD20 -24 31 -20 2.38" 6.83" 4.63" 0.99" 0.67"
4S24FLD24 -24 38 -24 2.37" 8.91" 5.84" 1.22" 0.74"
4S32FLD24 -32 38 -24 2.81" 10.50" 7.43" 1.22" 0.93"
4S32FLD32 -32 51 -32 2.81" 10.61" 7.54" 1.66" 0.93"
