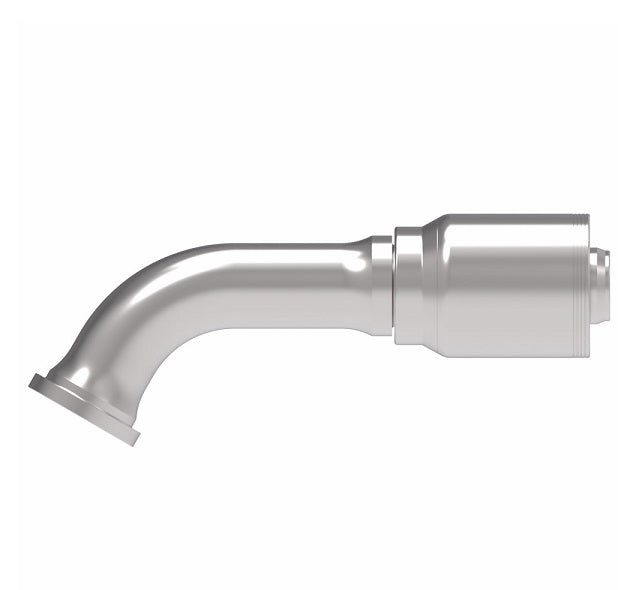

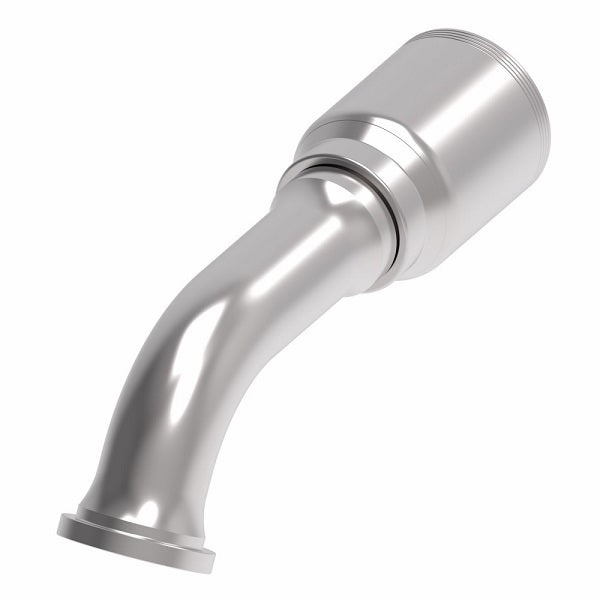

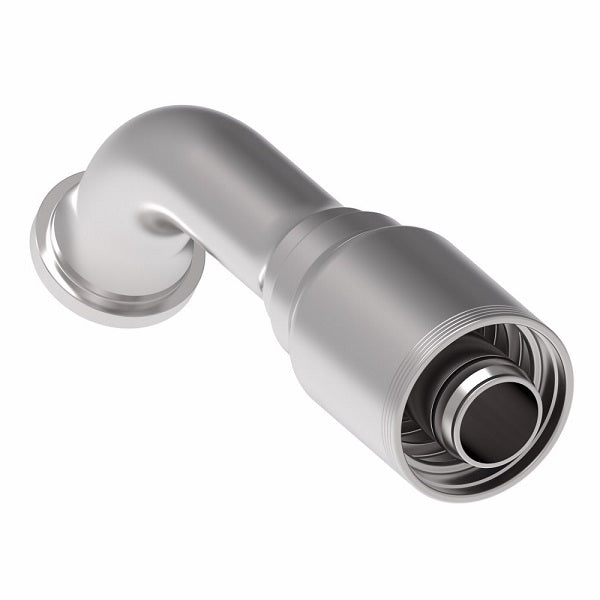

4S24FLG24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel
4S24FLG24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel
4S24FLG24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

4S24FLG24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

$219.38 - $219.38
$219.38
$219.38 - $219.38
$219.38

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24FLG24 Danfoss
Shape (Orientation): 60 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D EØ H
Dash Size DN Dash Size
4S8FLG8 -08 - -08 1.19" 3.47" 2.40" 0.36" 1.13"
4S12FLG8 -12 - -08 - - - - -
4S12FLG12 -12 19 -12 1.50" 5.27" 3.85" 0.56" 1.48"
4S16FLG12 -16 19 -12 1.75" 6.03" 4.61" 0.56" 1.76"
4S16FLG16 -16 25 -16 1.75" 6.16" 4.59" 0.76" 1.76"
4S20FLG16 -20 25 -16 2.00" 7.22" 5.65" 0.76" 2.20"
4S20FLG20 -20 25 -20 2.00" 7.86" 5.70" 0.99" 2.20"
4S24FLG20 -24 31 -20 2.38" 7.41" 5.24" 0.99" 2.04"
4S24FLG24 -24 38 -24 2.37" 9.97" 6.90" 1.22" 2.57"
4S32FLG32 -32 51 -32 2.81" 12.17" 9.10" 1.66" 3.38"
