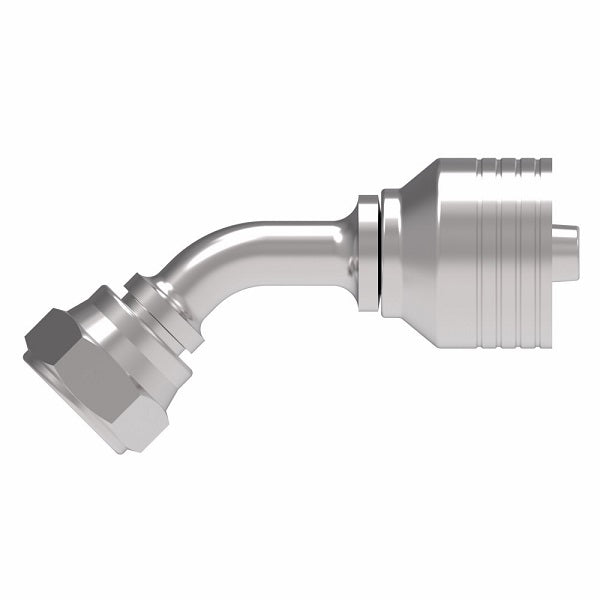

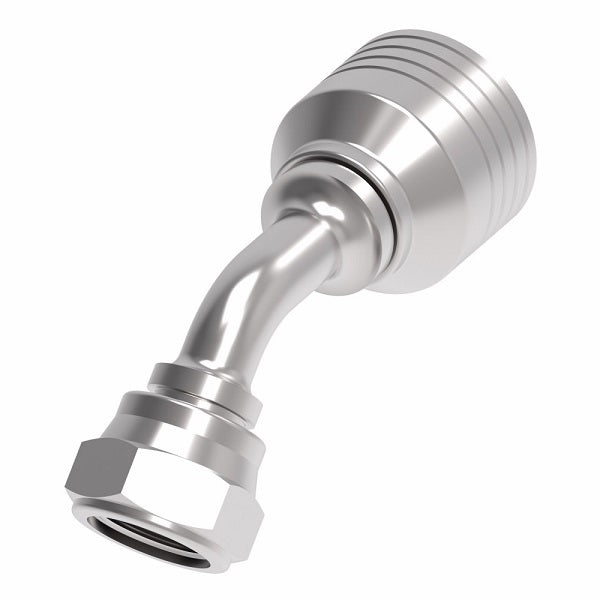

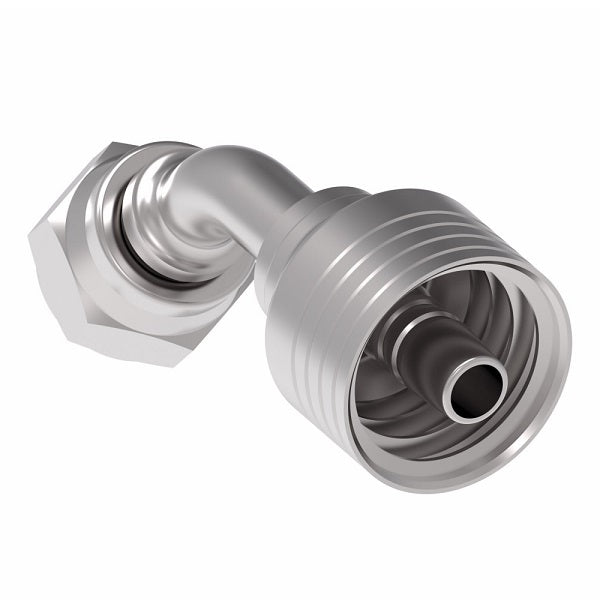

4S8BFA8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel, 45° Elbow (BFA) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel
4S8BFA8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel | Pack of 10
4S8BFA8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel | Pack of 10
4S8BFA8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel, 45° Elbow (BFA) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel

4S8BFA8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$642.20 - $642.20
$642.20
$642.20 - $642.20
$642.20

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S8BFA8 Danfoss | 10 |
Shape (Orientation): 45 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D EØ H Hex 1
Dash Size DN Dash Size
4S6BFA6 -06 - -06 - - - - - -
4S8BFA8 -08 - -08 G 1/2 3.60" 2.43" 0.38" 0.98" 1.06"
4S12BFA12 -12 19 -12 G 3/4" 4.42" 2.99" 0.56" 1.02" 32mm
4S16BFA12 -16 19 -12 G 1" 4.56" 3.13" 0.56" 1.18" 41mm
4S16BFA16 -16 25 -16 G 1" 5.13" 3.57" 0.76" 1.18" 41mm
4S20BFA16 -20 25 -16 G 1-1/4" 5.24" 3.68" 0.76" 1.34" 50mm
4S20BFA20 -20 31 -20 G 1-1/4" 5.89" 3.90" 0.99" 1.34" 50mm
4S24BFA24 -24 38 -24 G 1-1/2" 8.20" 5.13" 1.22" 1.67" 55mm
4S32BFA32 -32 51 -32 G 2" 9.78" 6.71" 1.66" 2.13" 70mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
