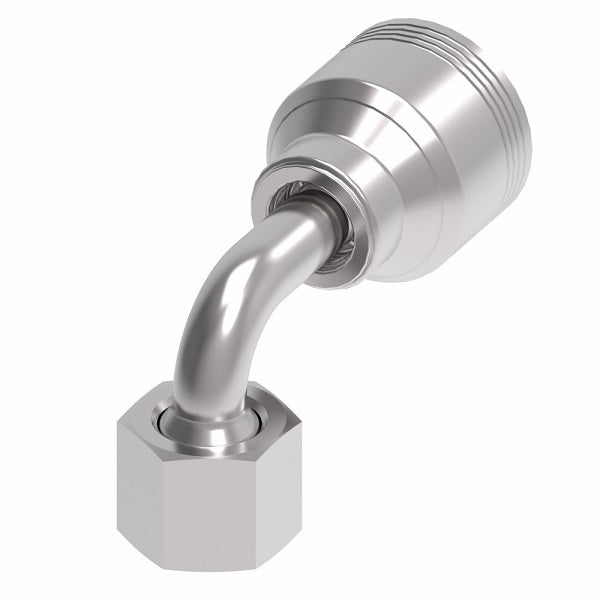

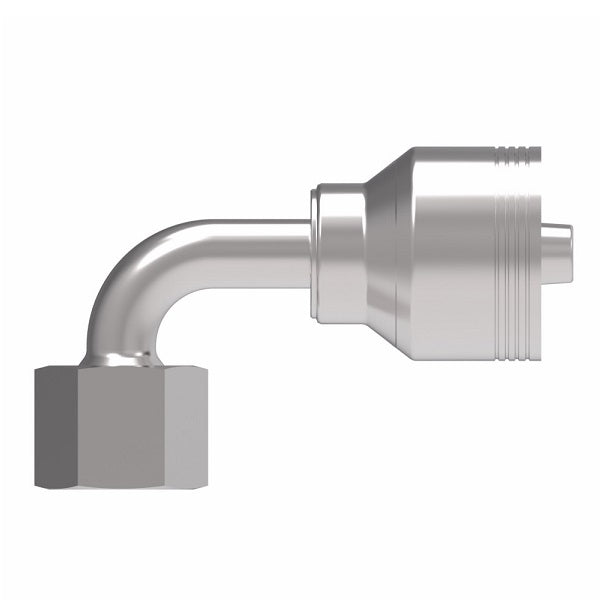

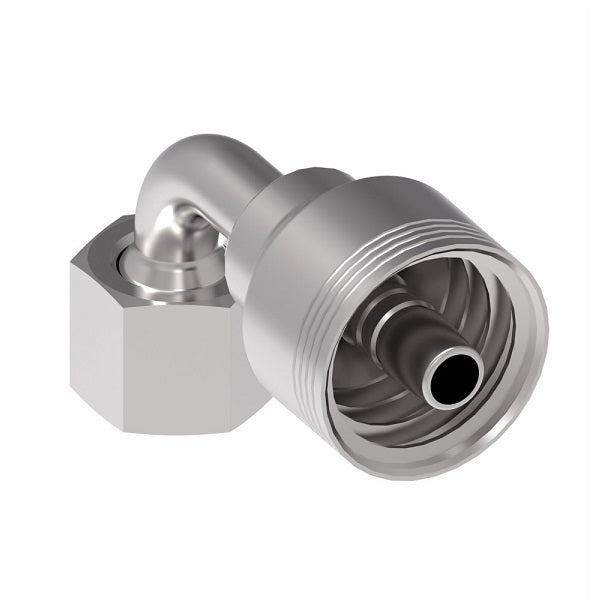

4SA10FRB10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
4SA10FRB10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10
4SA10FRB10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10
4SA10FRB10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

4SA10FRB10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10

$580.41 - $580.41
$580.41
$580.41 - $580.41
$580.41

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA10FRB10 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRB6 -06 - -06 11/16-16 2.34" 1.34" 0.26" 0.90" 13/16"
4SA6FRB6.038 -06 - -06 11/16-16 - - - - -
4SA8FRB6 -08 - -06 13/16-16 2.62" 1.62" 0.26" 1.15" 15/16"
4SA6FRB8 -06 - -08 11/16-16 2.56" 1.39" 0.26" 0.90" 13/16"
4SA8FRB8 -08 - -08 13/16-16 2.84" 1.67" 0.36" 1.15" 15/16"
4SA10FRB8 -10 - -08 1-14 3.07" 1.91" 0.38" 1.27" 1-1/8"
4SA12FRB8 -12 - -08 1-3/16-12 3.45" 2.28" 0.38" 1.88" 1-3/8"
4SA10FRB10 -10 - -10 1-14 3.07" 1.91" 0.45" 1.27" 1-1/8"
4SA10FRB10.047 -10 - -10 1-14 - - - - -
4SA12FRB10 -12 - -10 1-3/16-12 3.44" 2.29" 0.50" 1.88" 1-3/8"
4SA10FRB12 -10 19 -12 1-14 3.60" 2.18" 0.56" 1.27" 1-1/8"
4SA12FRB12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 2.28" 1-3/8"
4SA12FRB12.048 -12 - -12 - - - - - -
4SA16FRB12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 2.80" 1-5/8"
4SA12FRB16 -12 25 -16 1-3/16-12 4.23" 2.67" 0.76" 2.28" 1-3/8"
4SA16FRB16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 2.80" 1-5/8"
4SA16FRB16.056 -16 - -16 - - - - - -
4SA20FRB16 -20 25 -16 1-11/16-12 5.37" 3.81" 0.76" 3.07" 1-7/8"
4SA20FRB20 -20 31 -20 1-11/16-12 6.03" 3.85" 0.99" 3.07" 1-7/8"
4SA24FRB20 -24 31 -20 2-12 6.02" 3.85" 0.99" 3.39" 2-1/4"
4SA24FRB24 -24 38 -24 2-12 8.22" 5.15" 1.22" 4.09" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
