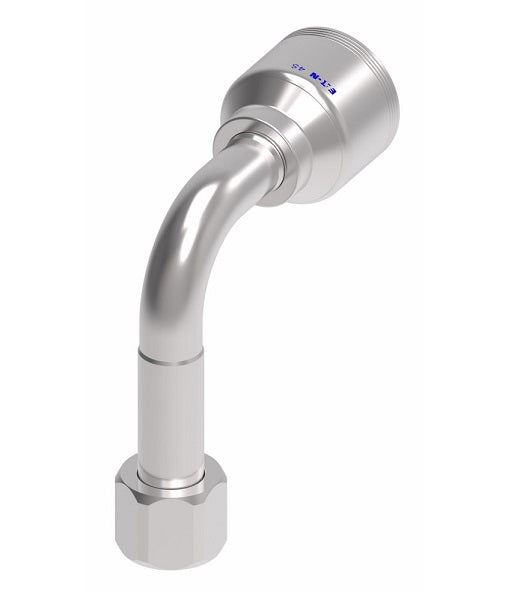

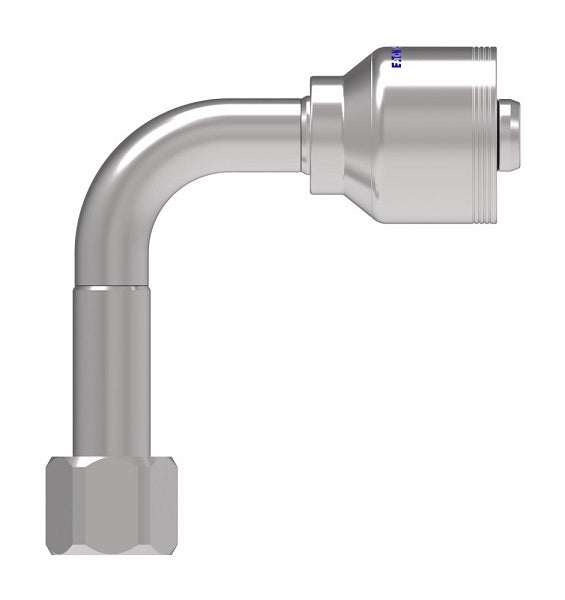

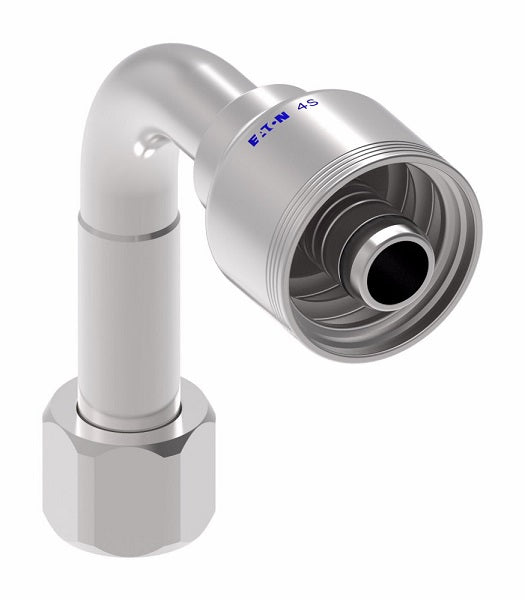

4SA12FJC12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow Long Drop (FJC) Crimp Fitting | -12 Female JIC/37° Swivel x -12 Hose Barb | Steel

4SA12FJC12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow Long Drop (FJC) Crimp Fitting | -12 Female JIC/37° Swivel x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$797.80 - $797.80

$797.80

$797.80 - $797.80

$797.80

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Long Drop Crimp Fitting (FJC) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4SA12FJC12 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4SA6FJC6	-06	-	-06	9/16-18	2.13"	1.22"	0.24"	2.18"	11/16"
4SA8FJC8	-08	-	-08	-	-	-	-	-	-
4SA10FJC8	-10	-	-08	7/8-14	2.78"	1.70"	0.37"	3.39"	1"
4SA12FJC12	-12	19	-12	1-1/16-12	3.99"	2.57"	0.56"	3.78"	1-1/4"
4SA16FJC16	-16	25	-16	1-5/16-12	4.43"	2.89"	0.75"	4.49"	1-1/2"
4SA20FJC20	-20	31	-20	1-5/8-12	5.22"	3.05"	0.99"	5.08"	2"
