Name: 4SA12FJG12 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 60° Elbow (FJG) Crimp Fitting | -12 Female JIC/37° Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4SA12FJG12 Danfoss
Price: 113.19 USD
Availability: InStock

$113.19 - $113.19

$113.19

$113.19 - $113.19

$113.19

Aeroquip® by Danfoss

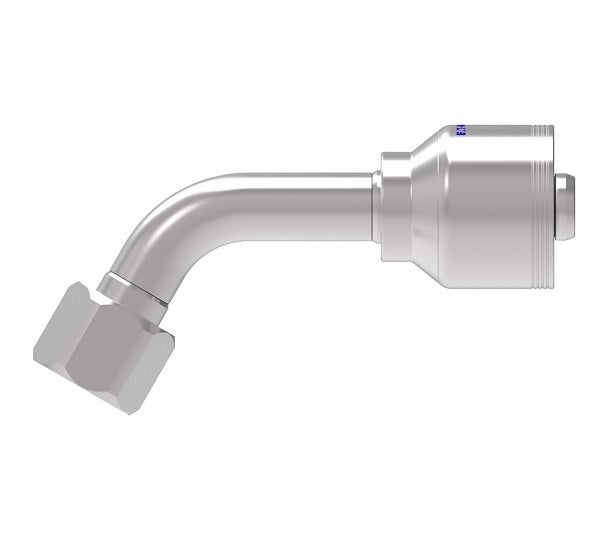

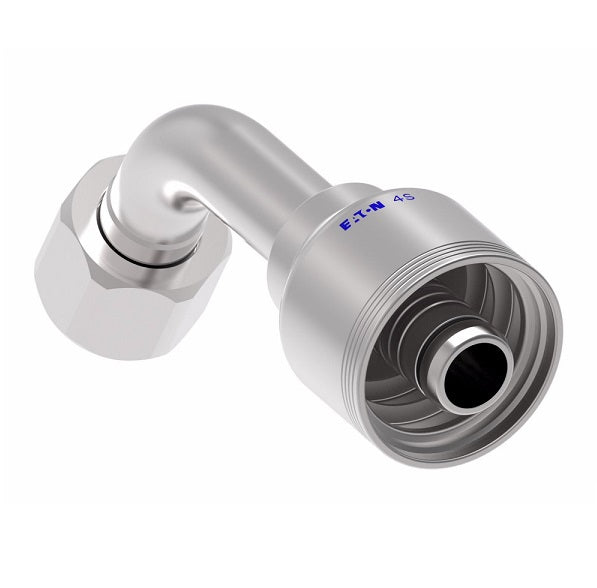

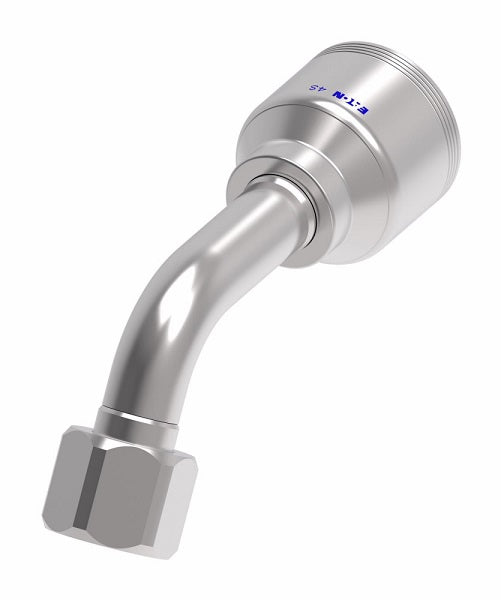

4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4SA12FJG12 Danfoss
Shape (Orientation):	60 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4SA12FJG12	-12	19	-12	1-1/16-12	5.00"	3.58"	0.56"	1.53"	1-1/4"
4SA16FJG16	-16	25	-16	1-5/16-12	5.69"	4.12"	0.76"	1.87"	1-1/2"
