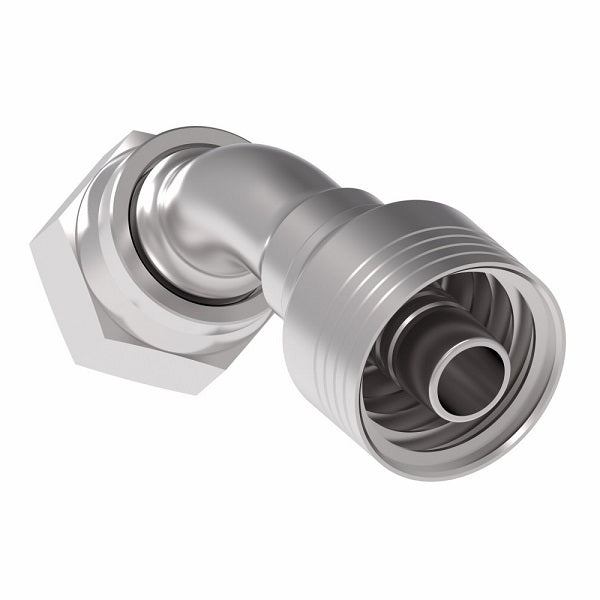

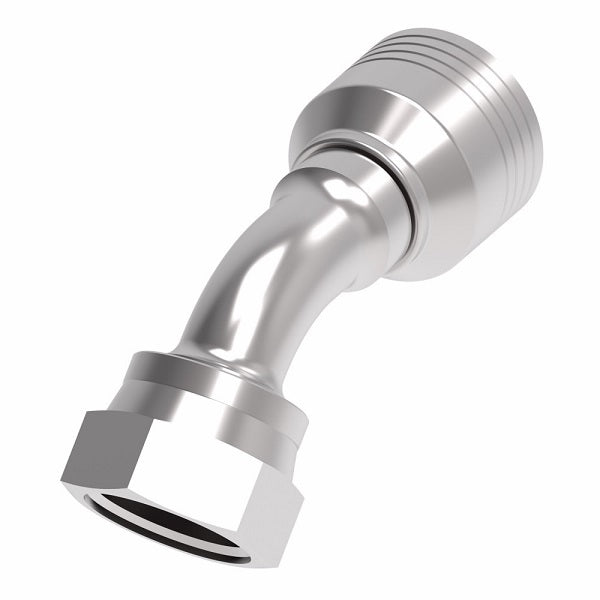

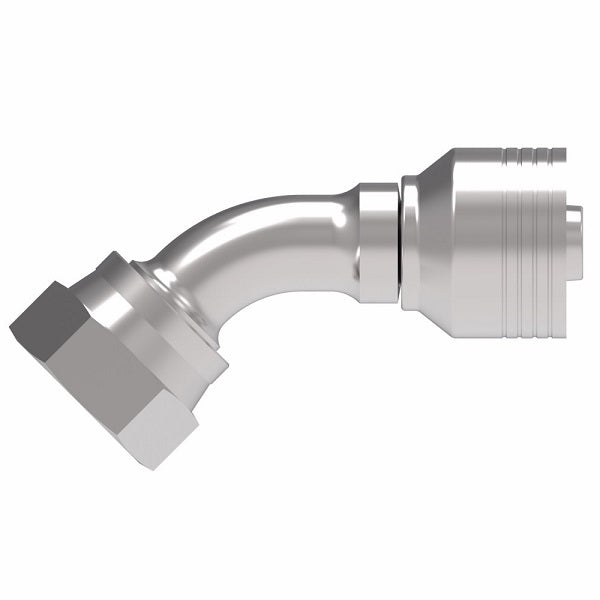

4SA12FRA10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -08 Hose Barb | Steel
4SA12FRA10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel | Pack of 10
4SA12FRA10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel | Pack of 10
4SA12FRA10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -08 Hose Barb | Steel

4SA12FRA10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel  x -10 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$735.00 - $735.00
$735.00
$735.00 - $735.00
$735.00

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FRA) Crimp Fitting - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12FRA10 Danfoss | 10 |
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA4FRA6 -04 - -06 9/16-18 2.14" 1.30" 0.17" 0.41" 11/16"
4SA6FRA6 -06 - -06 11/16-16 2.36" 1.43" 0.24" 0.43" 13/16"
4SA8FRA6 -08 - -06 13/16-16 2.58" 1.74" 0.26" 0.59" 15/16"
4SA8FRA8 -08 - -08 13/16-16 3.00" 1.79" 0.33" 0.59" 15/16"
4SA8FRA8.22 -08 - -08 13/16-16 - - - - -
4SA10FRA8 -10 - -08 1-14 3.08" 2.01" 0.38" 0.65" 1-1/8"
4SA10FRA10 -10 - -10 1-14 3.18" 2.02" 0.44" 0.65" 1-1/8"
4SA12FRA10 -12 - -10 1-3/16-12 3.39" 2.36" 0.50" 0.83" 1-3/8"
4SA12FRA12 -12 19 -12 1-3/16-12 4.28" 2.85" 0.56" 0.94" 1-3/8"
4SA12FRA12.021 -12 - -12 - - - - - -
4SA16FRA12 -16 19 -12 1-7/16-12 4.72" 3.30" 0.56" 1.10" 1-5/8"
4SA16FRA16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 1.10" 1-5/8"
4SA16FRA16.024 -16 - -16 - - - - - -
4SA20FRA16 -20 25 -16 1-11/16-12 5.38" 3.82" 0.76" 1.22" 1-7/8"
4SA20FRA20 -20 31 -20 1-11/16-12 6.04" 3.86" 0.99" 1.22" 1-7/8"
4SA24FRA24 -24 38 -24 2-12 8.35" 5.28" 1.22" 1.69" 2-1/4"
