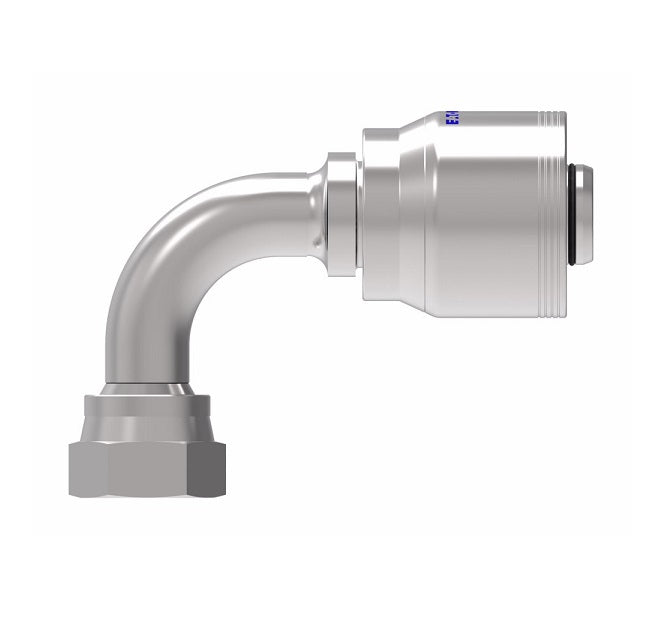

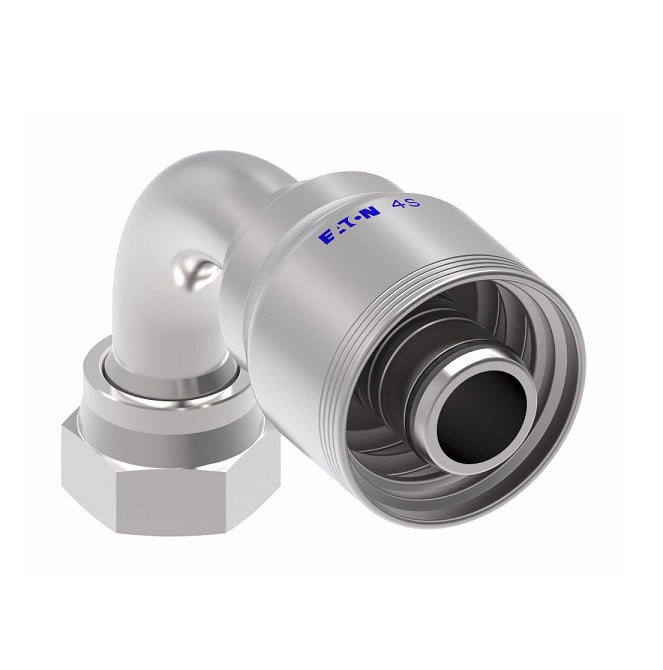

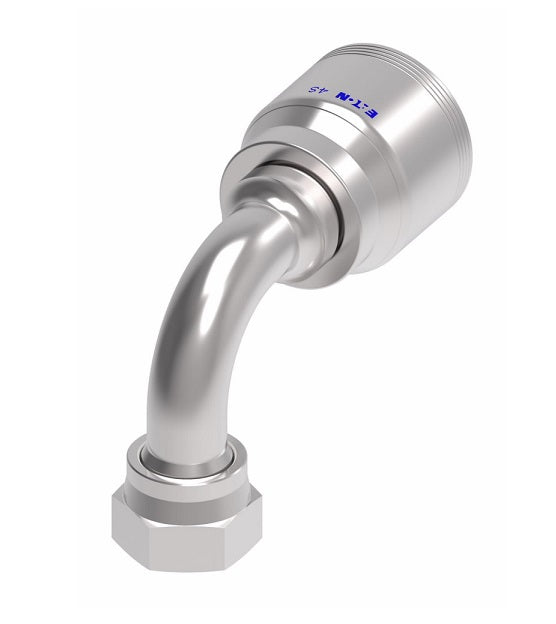

4SA12FRB16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
4SA12FRB16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
4SA12FRB16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
4SA12FRB16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

4SA12FRB16 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

$81.08 - $81.08
$81.08
$81.08 - $81.08
$81.08

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12FRB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRB6 -06 - -06 11/16-16 2.34" 1.34" 0.26" 0.90" 13/16"
4SA6FRB6.038 -06 - -06 11/16-16 - - - - -
4SA8FRB6 -08 - -06 13/16-16 2.62" 1.62" 0.26" 1.15" 15/16"
4SA6FRB8 -06 - -08 11/16-16 2.56" 1.39" 0.26" 0.90" 13/16"
4SA8FRB8 -08 - -08 13/16-16 2.84" 1.67" 0.36" 1.15" 15/16"
4SA10FRB8 -10 - -08 1-14 3.07" 1.91" 0.38" 1.27" 1-1/8"
4SA12FRB8 -12 - -08 1-3/16-12 3.45" 2.28" 0.38" 1.88" 1-3/8"
4SA10FRB10 -10 - -10 1-14 3.07" 1.91" 0.45" 1.27" 1-1/8"
4SA10FRB10.047 -10 - -10 1-14 - - - - -
4SA12FRB10 -12 - -10 1-3/16-12 3.44" 2.29" 0.50" 1.88" 1-3/8"
4SA10FRB12 -10 19 -12 1-14 3.60" 2.18" 0.56" 1.27" 1-1/8"
4SA12FRB12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 2.28" 1-3/8"
4SA12FRB12.048 -12 - -12 - - - - - -
4SA16FRB12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 2.80" 1-5/8"
4SA12FRB16 -12 25 -16 1-3/16-12 4.23" 2.67" 0.76" 2.28" 1-3/8"
4SA16FRB16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 2.80" 1-5/8"
4SA16FRB16.056 -16 - -16 - - - - - -
4SA20FRB16 -20 25 -16 1-11/16-12 5.37" 3.81" 0.76" 3.07" 1-7/8"
4SA20FRB20 -20 31 -20 1-11/16-12 6.03" 3.85" 0.99" 3.07" 1-7/8"
4SA24FRB20 -24 31 -20 2-12 6.02" 3.85" 0.99" 3.39" 2-1/4"
4SA24FRB24 -24 38 -24 2-12 8.22" 5.15" 1.22" 4.09" 2-1/4"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
