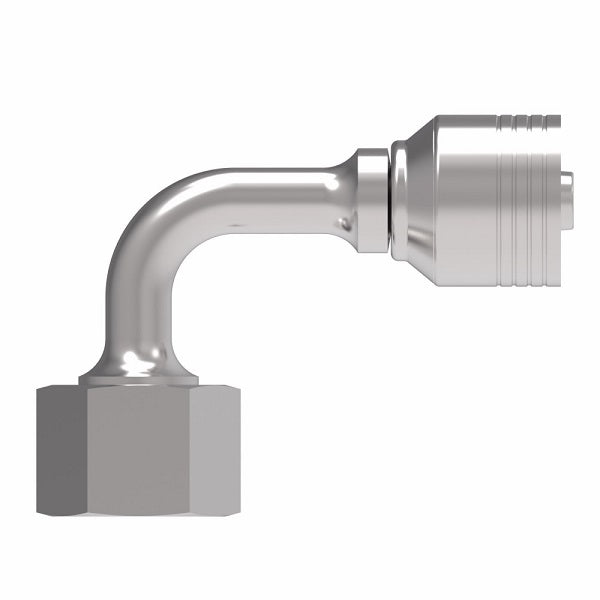

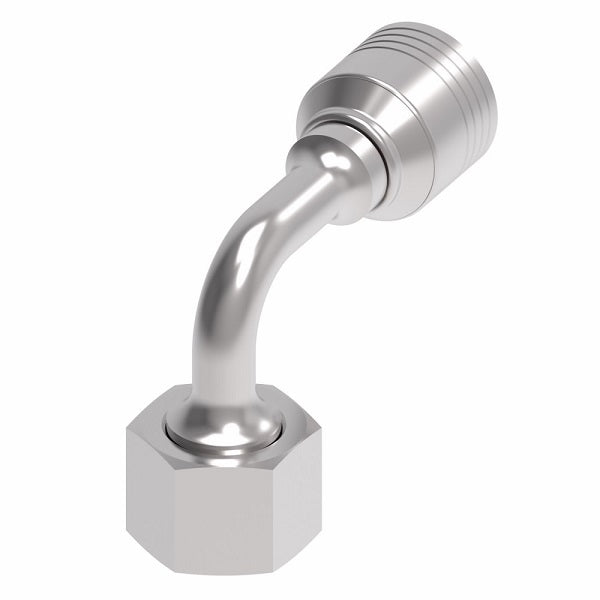

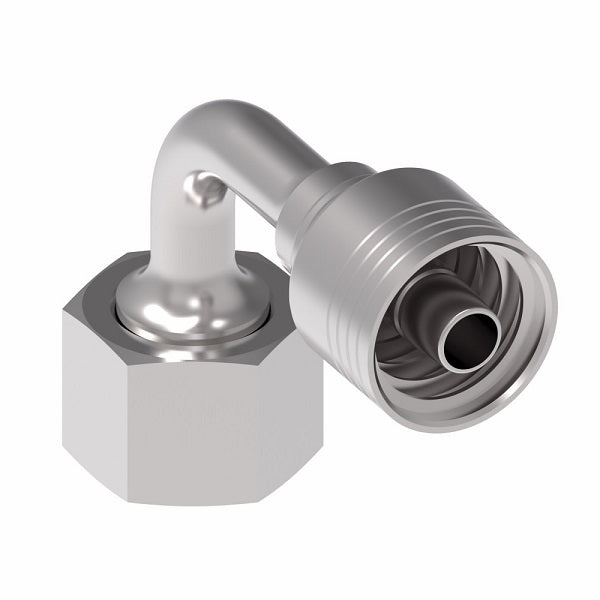

4SA12FRB8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
4SA12FRB8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
4SA12FRB8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
4SA12FRB8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

4SA12FRB8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$108.38 - $108.38
$108.38
$108.38 - $108.38
$108.38

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12FRB8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRB6 -06 - -06 11/16-16 2.34" 1.34" 0.26" 0.90" 13/16"
4SA6FRB6.038 -06 - -06 11/16-16 - - - - -
4SA8FRB6 -08 - -06 13/16-16 2.62" 1.62" 0.26" 1.15" 15/16"
4SA6FRB8 -06 - -08 11/16-16 2.56" 1.39" 0.26" 0.90" 13/16"
4SA8FRB8 -08 - -08 13/16-16 2.84" 1.67" 0.36" 1.15" 15/16"
4SA10FRB8 -10 - -08 1-14 3.07" 1.91" 0.38" 1.27" 1-1/8"
4SA12FRB8 -12 - -08 1-3/16-12 3.45" 2.28" 0.38" 1.88" 1-3/8"
4SA10FRB10 -10 - -10 1-14 3.07" 1.91" 0.45" 1.27" 1-1/8"
4SA10FRB10.047 -10 - -10 1-14 - - - - -
4SA12FRB10 -12 - -10 1-3/16-12 3.44" 2.29" 0.50" 1.88" 1-3/8"
4SA10FRB12 -10 19 -12 1-14 3.60" 2.18" 0.56" 1.27" 1-1/8"
4SA12FRB12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 2.28" 1-3/8"
4SA12FRB12.048 -12 - -12 - - - - - -
4SA16FRB12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 2.80" 1-5/8"
4SA12FRB16 -12 25 -16 1-3/16-12 4.23" 2.67" 0.76" 2.28" 1-3/8"
4SA16FRB16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 2.80" 1-5/8"
4SA16FRB16.056 -16 - -16 - - - - - -
4SA20FRB16 -20 25 -16 1-11/16-12 5.37" 3.81" 0.76" 3.07" 1-7/8"
4SA20FRB20 -20 31 -20 1-11/16-12 6.03" 3.85" 0.99" 3.07" 1-7/8"
4SA24FRB20 -24 31 -20 2-12 6.02" 3.85" 0.99" 3.39" 2-1/4"
4SA24FRB24 -24 38 -24 2-12 8.22" 5.15" 1.22" 4.09" 2-1/4"
