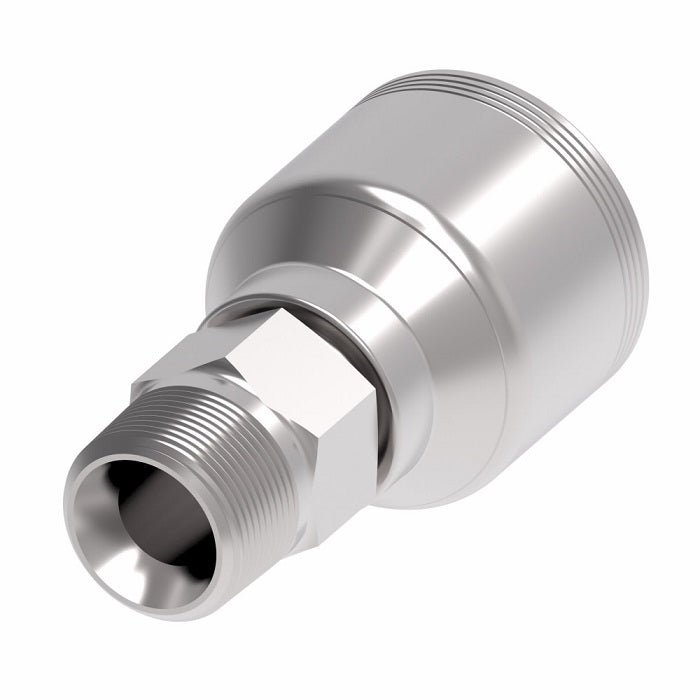

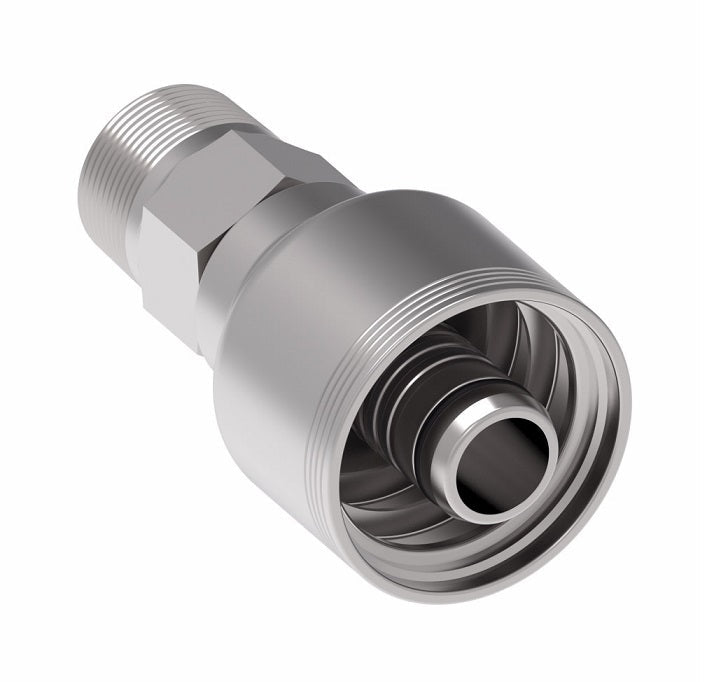

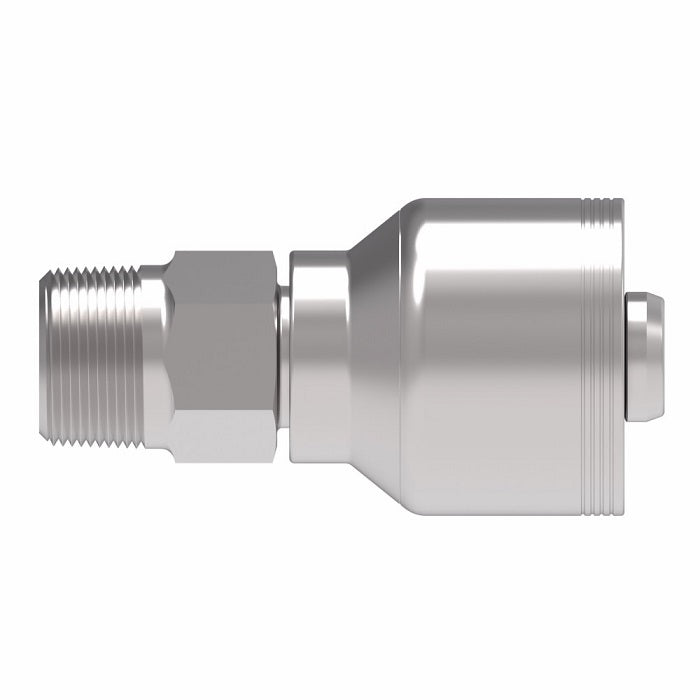

4SA12MP12 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -12 Male Pipe NPTF Rigid x -12 Hose Barb | Steel
4SA12MP12 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -12 Male Pipe NPTF Rigid x -12 Hose Barb | Steel
4SA12MP12 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -12 Male Pipe NPTF Rigid x -12 Hose Barb | Steel
4SA12MP12 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -12 Male Pipe NPTF Rigid x -12 Hose Barb | Steel

4SA12MP12 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -12 Male Pipe NPTF Rigid x -12 Hose Barb | Steel

$25.51 - $25.51
$25.51
$25.51 - $25.51
$25.51

Aeroquip® by Danfoss
4 Wire 4S Male Pipe NPTF Rigid Crimp Fitting (MP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12MP12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA4MP6 -04 - -06 1/4-18 2.02" 1.18" 0.26" 11/16"
4SA6MP6 -06 - -06 3/8-18 2.17" 1.27" 0.26" 11/16"
4SA8MP6 -08 - -06 1/2-14 2.11" 1.28" 0.26" 7/8"
4SA4MP8 -04 - -08 1/4-18 2.30" 1.23" 0.30" 13/16"
4SA6MP8 -06 - -08 3/8-18 2.39" 1.32" 0.38" 13/16"
4SA8MP8 -08 - -08 1/2-14 2.80" 1.60" 0.38" 7/8"
4SA12MP8 -12 - -08 3/4-14 2.46" 1.39" 0.38" 1-1/16"
4SA8MP12 -08 19 -12 1/2-14 3.33" 1.90" 0.56" 7/8"
4SA8MP10 -08 - -10 1/2-14 2.61" 1.58" 0.50" 15/16"
4SA12MP10 -12 - -10 3/4-14 2.43" 1.40" 0.50" 1-1/16"
4SA12MP12 -12 19 -12 3/4-14 3.38" 1.95" 0.56" 1-1/16"
4SA16MP12 -16 19 -12 1-11-1/2 3.34" 1.91" 0.56" 1-3/8"
4SA12MP16 -12 25 -16 3/4-14 3.51" 1.94" 0.75" 1-3/8"
4SA16MP16 -16 25 -16 1-11-1/2 3.70" 2.13" 0.75" 1-3/8"
4SA20MP16 -20 25 -16 1-1/4-11-1/2 3.56" 1.99" 0.75" 1-11/16"
4SA16MP20 -16 31 -20 1-11-1/2 4.24" 2.07" 0.99" 1-7/16"
4SA20MP20 -20 31 -20 1-1/4-11-1/2 4.71" 2.54" 0.99" 1-11/16"
4SA24MP24 -24 38 -24 1-1/2-11-1/2 5.64" 2.57" 1.22" 2"
4SA32MP32 -32 51 -32 2-11-1/2 5.91" 2.84" 1.66" 2-1/2"
