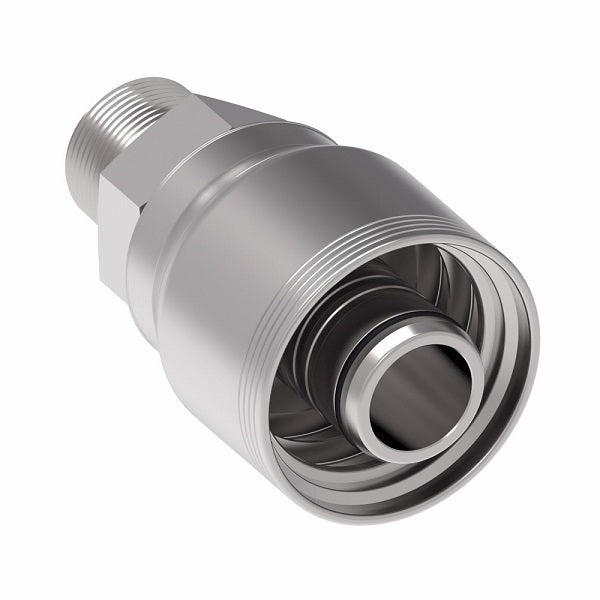

4SA16MP16 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -16 Male Pipe NPTF Rigid x -16 Hose Barb | Steel
4SA16MP16 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -16 Male Pipe NPTF Rigid x -16 Hose Barb | Steel
4SA16MP16 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -16 Male Pipe NPTF Rigid x -16 Hose Barb | Steel
4SA16MP16 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -16 Male Pipe NPTF Rigid x -16 Hose Barb | Steel

4SA16MP16 Aeroquip by Danfoss | 4 Wire 4S Male Pipe NPTF Rigid (MP) Crimp Fitting | -16 Male Pipe NPTF Rigid x -16 Hose Barb | Steel

$41.71 - $41.71
$41.71
$41.71 - $41.71
$41.71

Aeroquip® by Danfoss
4 Wire 4S Male Pipe NPTF Rigid Crimp Fitting (MP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA16MP16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA4MP6 -04 - -06 1/4-18 2.02" 1.18" 0.26" 11/16"
4SA6MP6 -06 - -06 3/8-18 2.17" 1.27" 0.26" 11/16"
4SA8MP6 -08 - -06 1/2-14 2.11" 1.28" 0.26" 7/8"
4SA4MP8 -04 - -08 1/4-18 2.30" 1.23" 0.30" 13/16"
4SA6MP8 -06 - -08 3/8-18 2.39" 1.32" 0.38" 13/16"
4SA8MP8 -08 - -08 1/2-14 2.80" 1.60" 0.38" 7/8"
4SA12MP8 -12 - -08 3/4-14 2.46" 1.39" 0.38" 1-1/16"
4SA8MP12 -08 19 -12 1/2-14 3.33" 1.90" 0.56" 7/8"
4SA8MP10 -08 - -10 1/2-14 2.61" 1.58" 0.50" 15/16"
4SA12MP10 -12 - -10 3/4-14 2.43" 1.40" 0.50" 1-1/16"
4SA12MP12 -12 19 -12 3/4-14 3.38" 1.95" 0.56" 1-1/16"
4SA16MP12 -16 19 -12 1-11-1/2 3.34" 1.91" 0.56" 1-3/8"
4SA12MP16 -12 25 -16 3/4-14 3.51" 1.94" 0.75" 1-3/8"
4SA16MP16 -16 25 -16 1-11-1/2 3.70" 2.13" 0.75" 1-3/8"
4SA20MP16 -20 25 -16 1-1/4-11-1/2 3.56" 1.99" 0.75" 1-11/16"
4SA16MP20 -16 31 -20 1-11-1/2 4.24" 2.07" 0.99" 1-7/16"
4SA20MP20 -20 31 -20 1-1/4-11-1/2 4.71" 2.54" 0.99" 1-11/16"
4SA24MP24 -24 38 -24 1-1/2-11-1/2 5.64" 2.57" 1.22" 2"
4SA32MP32 -32 51 -32 2-11-1/2 5.91" 2.84" 1.66" 2-1/2"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
