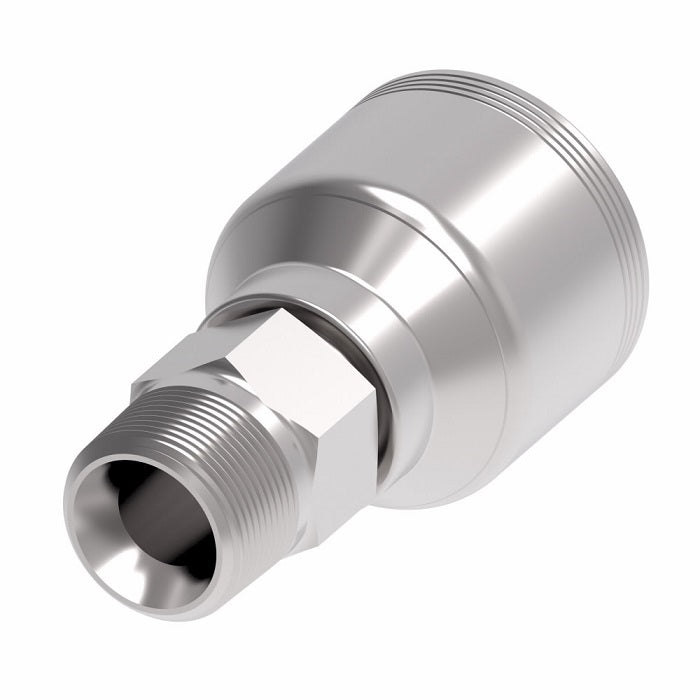

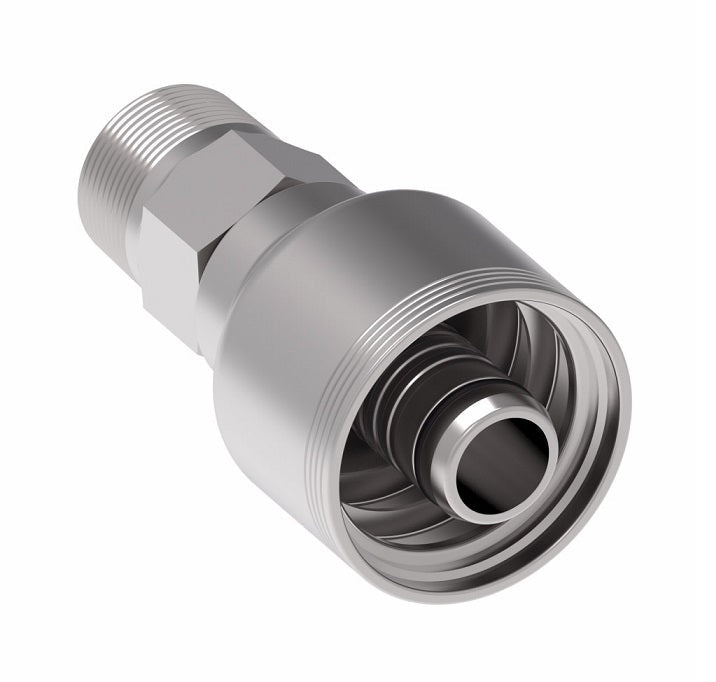

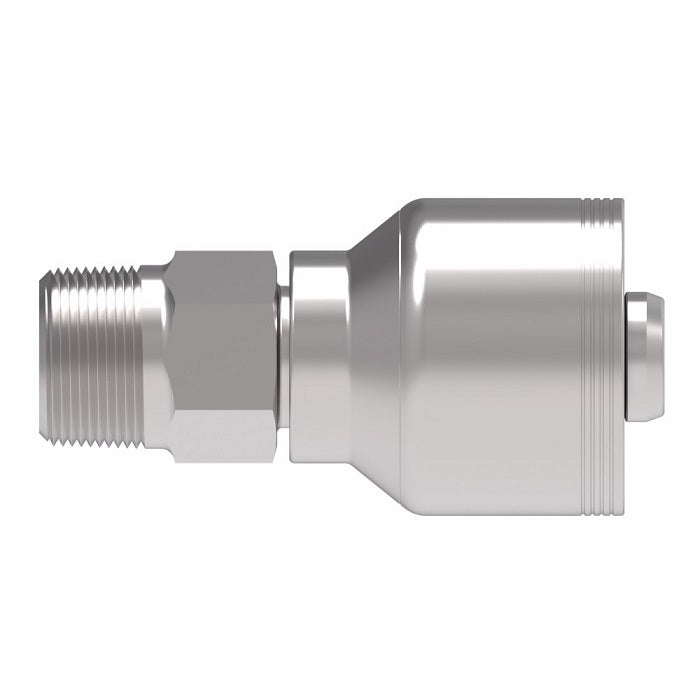

4SA6MP8 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -08 Hose Barb | Steel

4SA6MP8 Aeroquip by Danfoss | 4 Wire 4S Male Pipe Crimp Fitting (MP) | -06 Male Pipe x -08 Hose Barb | Steel

$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29

Aeroquip® by Danfoss
4 Wire 4S Male Pipe NPTF Rigid Crimp Fitting (MP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4SA6MP8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA4MP6 -04 - -06 1/4-18 2.02" 1.18" 0.26" 11/16"
4SA6MP6 -06 - -06 3/8-18 2.17" 1.27" 0.26" 11/16"
4SA8MP6 -08 - -06 1/2-14 2.11" 1.28" 0.26" 7/8"
4SA4MP8 -04 - -08 1/4-18 2.30" 1.23" 0.30" 13/16"
4SA6MP8 -06 - -08 3/8-18 2.39" 1.32" 0.38" 13/16"
4SA8MP8 -08 - -08 1/2-14 2.80" 1.60" 0.38" 7/8"
4SA12MP8 -12 - -08 3/4-14 2.46" 1.39" 0.38" 1-1/16"
4SA8MP12 -08 19 -12 1/2-14 3.33" 1.90" 0.56" 7/8"
4SA8MP10 -08 - -10 1/2-14 2.61" 1.58" 0.50" 15/16"
4SA12MP10 -12 - -10 3/4-14 2.43" 1.40" 0.50" 1-1/16"
4SA12MP12 -12 19 -12 3/4-14 3.38" 1.95" 0.56" 1-1/16"
4SA16MP12 -16 19 -12 1-11-1/2 3.34" 1.91" 0.56" 1-3/8"
4SA12MP16 -12 25 -16 3/4-14 3.51" 1.94" 0.75" 1-3/8"
4SA16MP16 -16 25 -16 1-11-1/2 3.70" 2.13" 0.75" 1-3/8"
4SA20MP16 -20 25 -16 1-1/4-11-1/2 3.56" 1.99" 0.75" 1-11/16"
4SA16MP20 -16 31 -20 1-11-1/2 4.24" 2.07" 0.99" 1-7/16"
4SA20MP20 -20 31 -20 1-1/4-11-1/2 4.71" 2.54" 0.99" 1-11/16"
4SA24MP24 -24 38 -24 1-1/2-11-1/2 5.64" 2.57" 1.22" 2"
4SA32MP32 -32 51 -32 2-11-1/2 5.91" 2.84" 1.66" 2-1/2"
