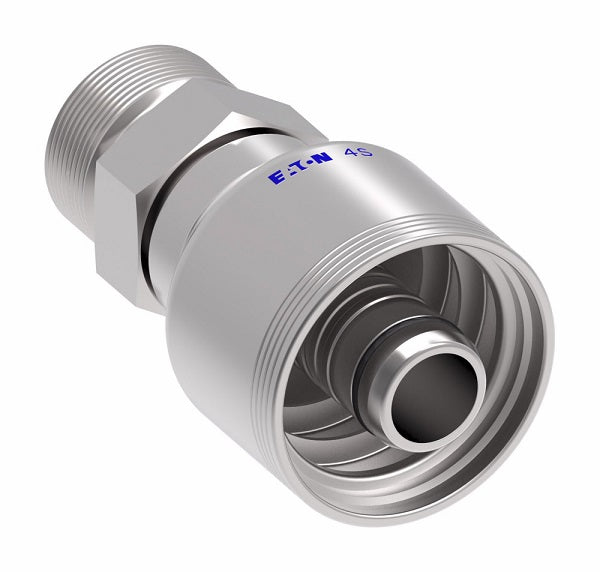

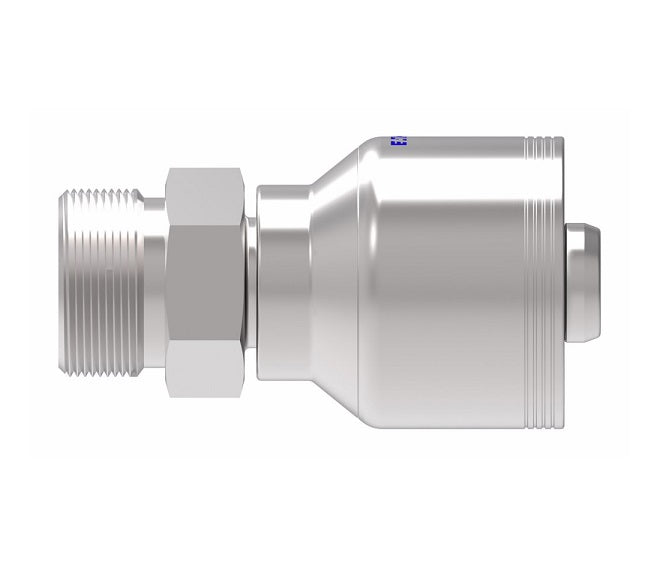

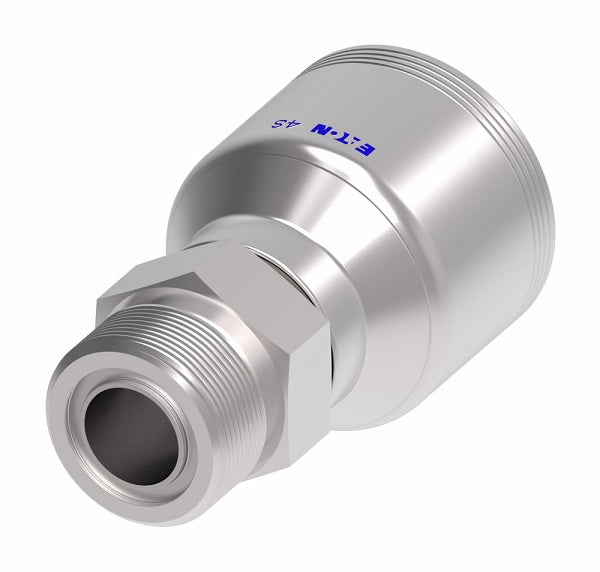

4SA8MR6 Aeroquip by Danfoss | 4 Wire 4S Male ORS (MR) Crimp Fitting | -08 Male O-Ring Face Seal x -06 Hose Barb | Steel

4SA8MR6 Aeroquip by Danfoss | 4 Wire 4S Male ORS (MR) Crimp Fitting | -08 Male O-Ring Face Seal x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$253.40 - $253.40

$253.40

$253.40 - $253.40

$253.40

Aeroquip® by Danfoss
4 Wire 4S Male ORS Rigid Crimp Fitting (MR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4SA8MR6 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MR6	-06	-	-06	11/16-16	2.05"	1.16"	0.26"	3/4"
4SA8MR6	-08	-	-06	13/16-16	1.79"	0.95"	0.26"	7/8"
4SA8MR8	-08	-	-08	13/16-16	2.54"	1.34"	0.38"	7/8"
4SA12MR12	-12	19	-12	1-3/16-12	3.18"	1.75"	0.56"	1-1/4"
4SA16MR12	-16	19	-12	1-7/16-12	3.08"	1.65"	0.56"	1-1/2"
4SA16MR16	-16	25	-16	1-7/16-12	3.45"	1.89"	0.76"	1-1/2"
4SA20MR16	-20	25	-16	1-11/16-12	3.19"	1.63"	0.76"	1-3/4"
4SA20MR20	-20	31	-20	1-11/16-12	4.22"	2.05"	0.99"	1-3/4"
