4SH26-20x20 Couplamatic Grip Crimp 4SH Series Coupling - JIC 37° - 90° Female Swivel - 1-1/4" Hose ID - 1-5/8x12 Thread Size

4SH26-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $44.67 Save $44.67
$111.68
$111.68 - $111.68
$111.68
$67.01
$67.01 - $67.01
$67.01

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: 4SH26-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

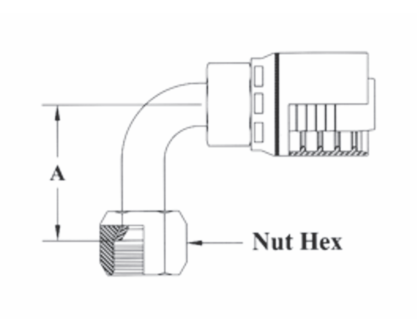

    Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
    Parker 73
    4SH26-20x20 1-1/4" 1-1/4" 1-5/8x12 3.40" 2" 13973-20-20
