4SH81-20x20 Couplamatic Grip Crimp 4SH Series Coupling - Extra Heavy Duty Flange - 45° Bend - 1-1/4" Hose ID - 1-1/4" Flange Size (for use on Caterpillar® Equipment)

4SH81-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | for use on Caterpillar® Equipment

Save $46.71 Save $46.71
$116.78
$116.78 - $116.78
$116.78
$70.07
$70.07 - $70.07
$70.07

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Extra Heavy Duty Flange - 45° Bend For use on Caterpillar® Equipment
Specifications for Variant SKU: 4SH81-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Caterpillar Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
4SH Series — Extreme Pressure No-Skive

4SH81 Grip Crimp 4SH Series Coupling — 45° Elbow, for Caterpillar Equipment

4SH81 is the 45° Elbow, for Caterpillar Equipment configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.

1

What are the main product features?
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
  • Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
  • Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2

Which sizes are available?

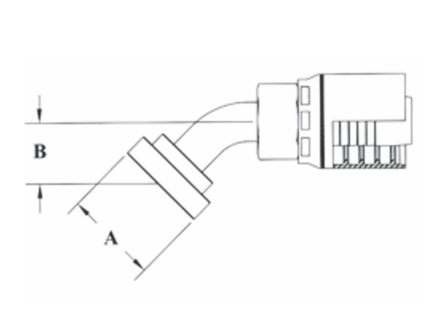

Part Number Hose ID Flange Size A-DiaInches B-Drop
4SH81-20x20 1-1/4" 1-1/4" 2.12" 1.50"
4SH81-24x24 1-1/2" 1-1/2" 2.50" 1.75"
