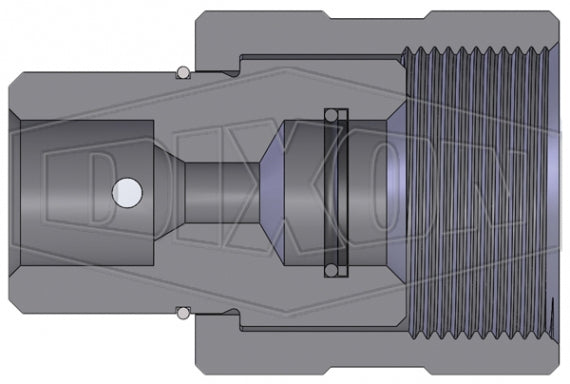

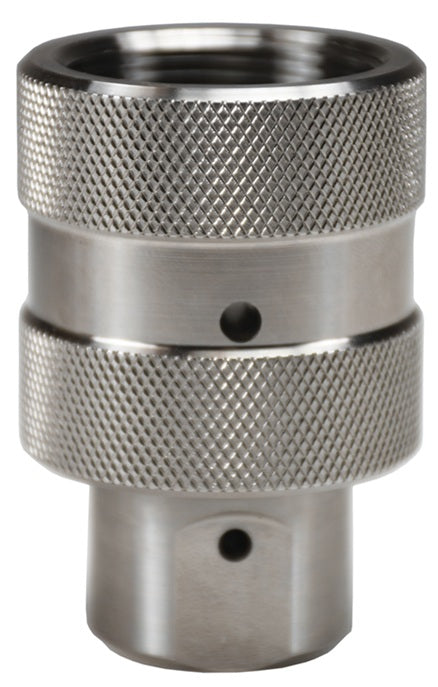

4TDPF4.5-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | TD-Series | 9/16" Female MP Thread x 1/2" 20K Threaded End | Socket | Nitrile Seal | 316 Stainless Steel

Save $7.35

$66.14

$66.14 - $66.14

$66.14

$58.79

$58.79 - $58.79

$58.79

Dixon Valve & Coupling
Hydraulic Coupling: TD-Series 20K Threaded Coupler (Female MP Threads)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4TDPF4.5-SS Dixon
Series:	TD-Series
Shape (Orientation):	Straight
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Jet Stream Screw Type Spir Star CQD Series, DNP CRS Series
Construction:	Machined components are manufactured using 316 stainless steel bar stock. Stainless steel retaining rings maximize corrosion resistance and extend service life.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a Nitrile anti-extrusion ring, providing resistance to O-ring dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

TD-Series \| TD-Series 15K and 20K Threaded Couplings Rated Pressure Chart
Body Size	Max. Working Pressure	Flow ΔP = 40 PSI
1/2" x 1/2" NPTF	15,000 PSI (1,034 Bar)	40 GPM
1/2" x 9/16" MP	20,000 PSI (1,379 Bar)	40 GPM

TD-Series \| 20K Threaded Coupler (Female MP Threads)

Part Number	Coupling Type	Body Size	Thread Size	Material	Length	Max. OD	Hex	Compatible Dust Plug
4TDPF4.5-SS	Socket/Female	1/2"	9/16" Female MP	316 Stainless	2.85" (72.39mm)	1.88" (47.75mm)	1.13mm	4.5TDDP-A

TD-Series \| 20K Threaded Plug (Female MP Threads)

Part Number	Coupling Type	Body Size	Thread Size	Material	Length	Max. OD	Hex	Compatible Dust Cap
TD4PF4.5-SS	Plug/Female	1/2"	9/16" Female MP	316 Stainless	2.40" (60.96mm)	1.74" (44.20mm)	1.13mm	TD4.5DC-A
