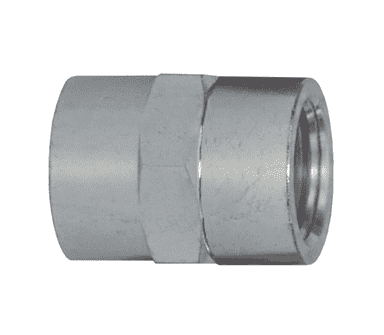

5000-16-12 Dixon Zinc Plated Steel Female NPTF Hex Pipe Coupling - 1"-11-1/2 Female NPTF Pipe x 3/4"-14 Female NPTF Pipe

5000-16-12 Dixon Valve Zinc Plated Steel Female NPTF Hex Pipe Coupling - 1"-11-1/2 Female NPTF Pipe x 3/4"-14 Female NPTF Pipe

Save $0.67 Save $0.67
$6.73
$6.73 - $6.73
$6.73
$6.06
$6.06 - $6.06
$6.06

NPT Fittings - Female NPTF Hex Pipe Couplings - Zinc Plated Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5000-16-12 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPTF, 3/4in Female NPTF
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 140138.
Part Number Female NPTF Pipe Female NPTF Pipe Working Pressure Weight (Lbs.)
5000-2 1/8"-27 1/8"-27 5000 PSI 0.0500
5000-4 1/4"-18 1/4"-18 5000 PSI 0.0600
5000-6-4 3/8"-18 1/4"-18 4000 PSI 0.1120
5000-6 3/8"-18 3/8"-18 4000 PSI 0.1050
5000-8-6 1/2"-14 3/8"-18 3000 PSI 0.2600
5000-8 1/2"-14 1/2"-14 3000 PSI 0.2200
5000-12 3/4"-14 3/4"-14 2500 PSI 0.3240
5000-16-12 1"-11-1/2 3/4"-14 2000 PSI 0.5800
5000-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.4920
5000-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 0.7100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
