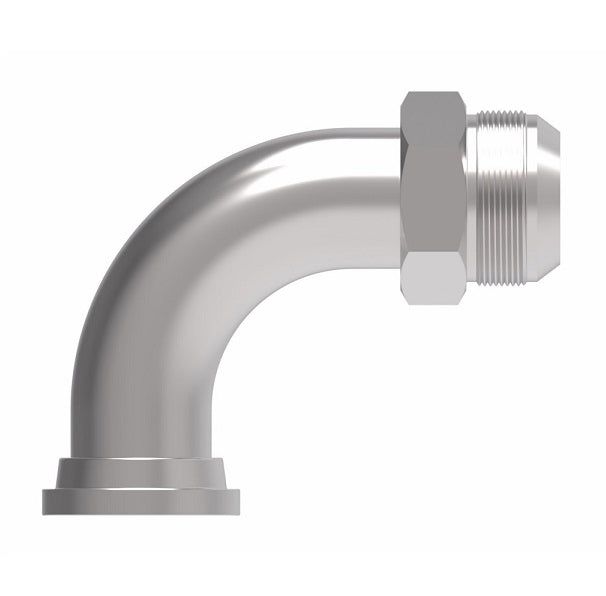

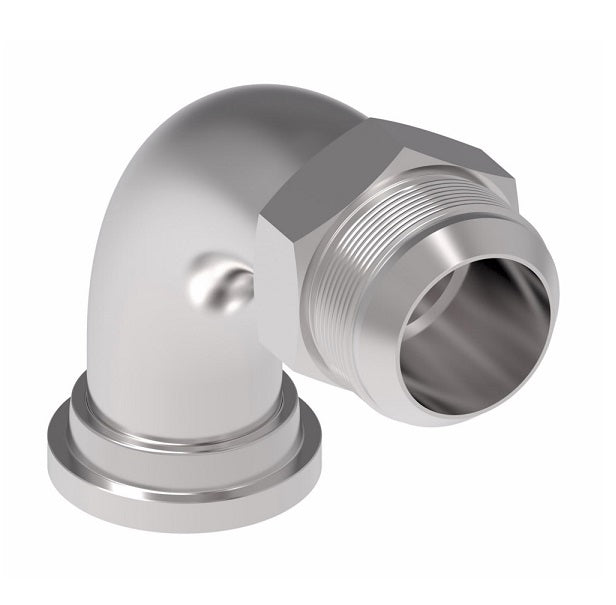

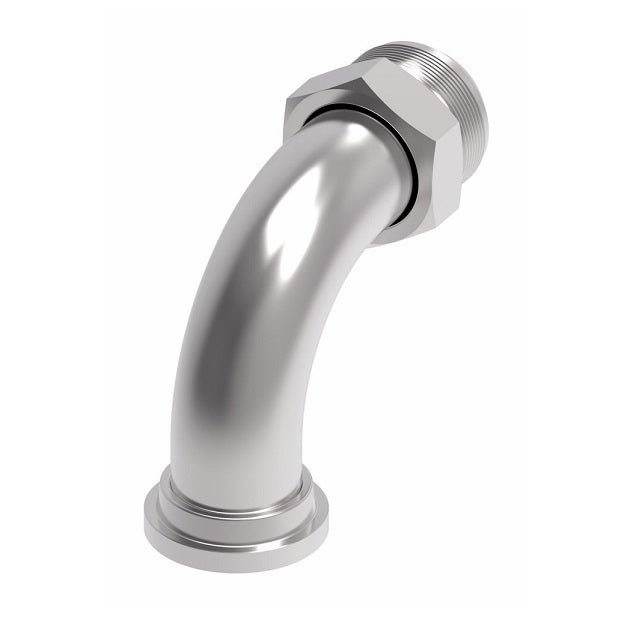

500024-32-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -32 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel
500024-32-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -32 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel
500024-32-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -32 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel
500024-32-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -32 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel

500024-32-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -32 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel

$280.89 - $280.89
$280.89
$280.89 - $280.89
$280.89

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 500024-32-24S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 2in Code 61 Flange, 1-1/2in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
500024-8S 1/2" 0.50" 3/4-16 1.78" 1.62"
500024-12S 3/4" 0.75" 1-1/16-12 2.49" 2.15"
500024-12-8S 3/4" 0.50" 3/4-16 1.78" 1.62"
500024-12-10S 3/4" 0.63" 7/8-14 2.38" 2.15"
500024-16S 1" 1.00" 1-5/16-12 2.79" 2.37"
500024-16-10S 1" 0.63" 7/8-14 2.16" 2.12"
500024-16-12S 1" 0.75" 1-1/16-12 2.49" 2.15"
500024-20S 1-1/4" 1.25" 1-5/8-12 3.14" 2.50"
500024-20-12S 1-1/4" 0.75" 1-1/16-12 2.49" 2.15"
500024-20-16S 1-1/4" 1.00" 1-5/16-12 2.79" 2.37"
500024-20-24S 1-1/4" 1.50" 1-7/8-12 3.58" 2.69"
500024-24S 1-1/2" 1.50" 1-7/8-12 3.58" 2.75"
500024-24-16S 1-1/2" 1.00" 1-5/16-12 2.79" 2.44"
500024-24-20S 1-1/2" 1.25" 1-5/8-12 3.14" 2.50"
500024-24-32S 1-1/2" 2.00" 1-7/8-12 3.95" 2.75"
500024-32S 2" 2.00" 2-1/2-12 4.46" 3.25"
500024-32-20S 2" 1.25" 1-5/8-12 3.14" 2.56"
500024-32-24S 2" 1.50" 1-7/8-12 3.58" 2.75"
500024-40-24S 2-1/2" 1.50" 1-7/8-12 3.58" 2.81"
500024-40-32S 2-1/2" 2.00" 2-1/2-12 - -
500024-40-40S 2-1/2" 2.50" 3-12 5.86" 5.19"
