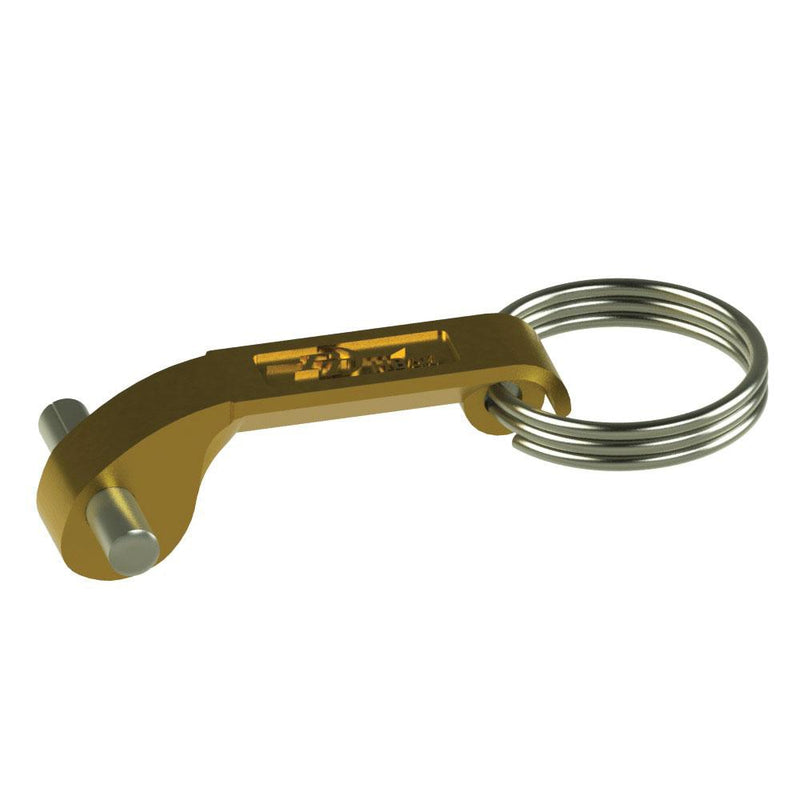

5000505A (HB10) by PT-Coupling | Replacement Standard Single Cam Arm Assembly | For 1/2" & 3/4" Coupler Size | Brass

5000505A (HB10) by PT-Coupling | Replacement Standard Single Cam Arm Assembly | For 1/2" & 3/4" Coupler Size | Brass

Save $2.01 Save $2.01
$5.42
$5.42 - $5.42
$5.42
$3.41
$3.41 - $3.41
$3.41

PT Coupling
Standard Single Cam Arm Assembly Replacement Parts

Includes: 1 cam arm, 1 ring & 1 pin.
Specifications for Variant SKU: 5000505A PT-Coupling
Material(s): Brass
Features & Applications:
  • 1 cam arm, 1 ring & 1 pin
Part
Name		 Item # Coupler Size
The assemblies below include (1) cam arm, (1) ring and (1) pin
HB10 5000505A 1/2" & 3/4"
HB11 5000510A 1"
HB12 5000512A 1-1/4"
HB15 5000515A 1-1/2"
HB20/25 5000520A 2" & 2-1/2"
The assembly below includes (1) cam arm, (1) ring and (1) 2" long pin
HB30/40/50 5000530A 3", 4", & 5"
The assembly below includes (1) cam arm, (1) ring and (1) 1-5/8" pin
HBV/30/40/50 5000630A 3", 4", & 5"
The assemblies below include (1) cam arm, (1) ring and (1) pin
HB60/80 5000560A 6", 8", 10", & 12"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
