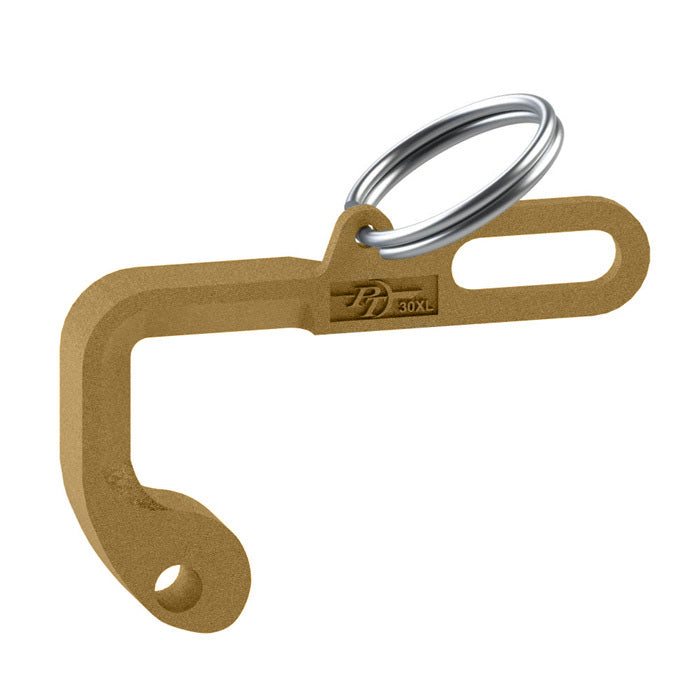

5003530A (30/40XL) by PT-Coupling | Locking Cam Assembly For VL Couplers | Fits 3" & 4" Couplers | Brass

5003530A (30/40XL) by PT-Coupling | Locking Cam Assembly For VL Couplers | Fits 3" & 4" Couplers | Brass

Save $11.04 Save $11.04
$29.73
$29.73 - $29.73
$29.73
$18.69
$18.69 - $18.69
$18.69

PT Coupling
Cam and Groove (Camlock) Locking Cam Assembly For VL Couplers | Brass

Includes: 1 Cam Arm, 1 Pin, & 1 Pull Ring

Made in the USA
Specifications for Variant SKU: 5003530A PT-Coupling
Shape (Orientation): Straight
Material(s): Brass
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Includes: 1 Cam Arm, 1 Pin & 1 Pull Ring
  • 316 Stainless Steel cam arms come standard with 300 series pin and ring.
  • Pull rings are not included in the 6 inch XL Locking Cam Assembly.
  • 316 Stainless Steel:
    • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
    • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Brass:
    • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
    • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Fits Coupler
Size
316 Stainless Steel
20XL 5004020A 2" & 2-1/2"
30/40XL 5004030A 3" & 4"
Brass
30/40XL 5003530A 3" & 4"
50XL 5003550A 5"
60XL 5003560A 6"
