5005140 THERMOBARB® by NewAge | Natural Nylon Barbed Tee | 1/4" x 3/8" x 3/8" Hose Barb | Bag of 100

Save $4.22

$52.22

$52.22 - $52.22

$52.22

$48.00

$48.00 - $48.00

$48.00

PRODUCT DESCRIPTION

NewAge Industries - THERMOBARB® Plastic Fittings - Series 500 - Natural Nylon Multi-Barbed Fittings - Barbed Tee

Package Quantity: 100 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5005140 NewAge \| 100 \|
Brand:	THERMOBARB
Shape (Orientation):	Tee
Ends Configuration:	1/4in Hose Barb, 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s):	Nylon
Applicable Specs & Approvals:	NSF 51, NSF 61, Applicable FDA Requirements, Animal-Derived Ingredient Free

Features:
Formulated to resist physical stress and abrasion Material: nylon 6 compound, NSF-51 and NSF-61 listed; FDA-approved ingredients Free of animal derived ingredients and conflict minerals Maximum Operating Temperature**: 149°F Excellent mechanical properties and strength
Recommended Clamps:
Oetiker® Clamps Kwik Clamps™ - Nylon Double Bond Hose Clamps Worm Gear Clamps - Stainless Steel Clamps

Part Number	Dimensions (Hose ID x Hose ID x Hose ID)
5005000†	3/16" x 3/16" x 3/16"
5005070	1/4" x 1/4" x 1/4"
5005140	1/4" x 3/8" x 3/8"
5005175	1/4" x 1/2" x 1/2"
5005210	5/16" x 5/16" x 5/16"
5005245	3/8" x 3/8" x 3/8"
5005350	1/2" x 1/2" x 1/2"
5005385	5/8" x 5/8" x 5/8"
5005420	3/4" x 3/4" x 3/4"

* Limited stock item; lead times and minimums may apply --contact support.
† Available in single barb style only

** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications.

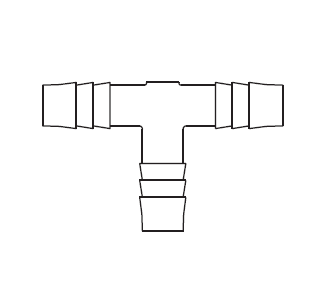

Note: Actual product may appear different than shown in drawings
