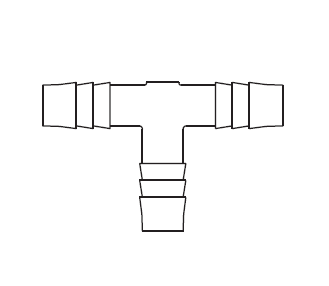

5014828 THERMOBARB® by NewAge | Black Polyethylene Barbed Tee | 15/16" x 5/16" x 5/16" Hose ID | Bag of 100

5014828 THERMOBARB® by NewAge | Black Polyethylene Barbed Tee | 15/16" x 5/16" x 5/16" Hose ID | Bag of 100

Save $2.44 Save $2.44
$41.11
$41.11 - $41.11
$41.11
$38.67
$38.67 - $38.67
$38.67

PRODUCT DESCRIPTION

NewAge Industries - THERMOBARB® Plastic Fittings - Series 501 - Black Polyethylene Multi-Barbed Fittings - Barbed Tee

Package Quantity: 100 EA

Specifications for Variant SKU: 5014828 NewAge | 100 |
Brand: THERMOBARB
Shape (Orientation): Tee
Ends Configuration: 15/16in Hose Barb, 5/16in Hose Barb, 5/16in Hose Barb, Some Ends Match
Material(s): Silicone
Applicable Specs & Approvals: Animal-Derived Ingredient Free, BPA Free, Conflict Mineral Free, California Prop 65 compliant
Features:
  • Formulated for chemical compatibility and high impact resistance at lower temperatures
  • Material: bimodal polyethylene
  • Free of animal derived ingredients, conflict minerals and BPA
  • California Prop 65 compliant
  • Minimum Temperature**: -103°F
Recommended Clamps:
  • Oetiker® Clamps
  • Kwik Clamps™ - Nylon Double Bond Hose Clamps
  • Worm Gear Clamps - Stainless Steel Clamps

Part Number Dimensions (Hose ID x Hose ID x Hose ID)
5014618† 3/16" x 3/16" x 3/16"
5014653 3/16" x 3/8" x 3/8"
5014688 1/4" x 1/4" x 1/4"
5014758 1/4" x 3/8" x 3/8"
5014793 1/4' x 1/2" x 1/2"
5014828 5/16" x 5/16" x 5/16"
5014898 3/8" x 3/8" x 3/8"
5015003 1/2" x 1/2" x 1/2"
5015038 5/8" x 5/8" x 5/8"
5015073 3/4" x 3/4" x 3/4"

* Limited stock item; lead times and minimums may apply -- contact support.
† Available in single barb style only

** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications.
