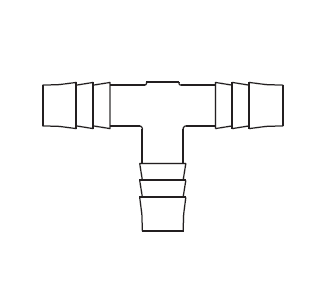

5026665 THERMOBARB® by NewAge | Natural Polypropylene Barbed Tee | 1/4" x 1/4" x 1/4" Hose ID | Bag of 100

5026665 THERMOBARB® by NewAge | Natural Polypropylene Barbed Tee | 1/4" x 1/4" x 1/4" Hose ID | Bag of 100

Save $2.44 Save $2.44
$41.11
$41.11 - $41.11
$41.11
$38.67
$38.67 - $38.67
$38.67

PRODUCT DESCRIPTION

NewAge Industries - THERMOBARB® Plastic Fittings - Series 502 - Natural Polypropylene Multi-Barbed Fittings - Barbed Tee

Package Quantity: 100 EA

Specifications for Variant SKU: 5026665 NewAge | 100 |
Brand: THERMOBARB
Shape (Orientation): Tee
Ends Configuration: 1/4in Hose Barb, 1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s): Polypropylene
Applicable Specs & Approvals: Animal-Derived Ingredient Free, Applicable FDA Requirements, BPA Free, Conflict Mineral Free
Features:
  • Formulated for excellent chemical and solvent resistance
  • Material: high impact polypropylene copolymer, FDA-approved ingredients
  • Free of animal derived ingredients, conflict minerals and BPA
  • California Prop 65 compliant
  • Maximum Operating Temperature**: 220°F
  • A robust barb and fitting design
Recommended Clamps:
  • Oetiker® Clamps
  • Kwik Clamps™ - Nylon Double Bond Hose Clamps
  • Worm Gear Clamps - Stainless Steel Clamps

Part Number Dimensions (Hose ID x Hose ID x Hose ID)
5026595† 3/16" x 3/16" x 3/16"
5026665 1/4" x 1/4" x 1/4"
5026805 3/8" x 3/8" x 3/8"
5026896 1/2" x 1/2" x 1/2"

† Available in single barb style only
** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications.

NewAge Industries

NewAge Industries

NewAge Industries is a leading independent, employee-owned manufacturer of fluid transfer systems that produce high-quality tubing, hose, fittings, clamps, and accessories and offers expert project guidance and services.

As a reliable provider that offers an exceptional customer experience, a culture of social responsibility, and a focus on sustainability, NewAge helps businesses engineer products that create a positive global impact.
