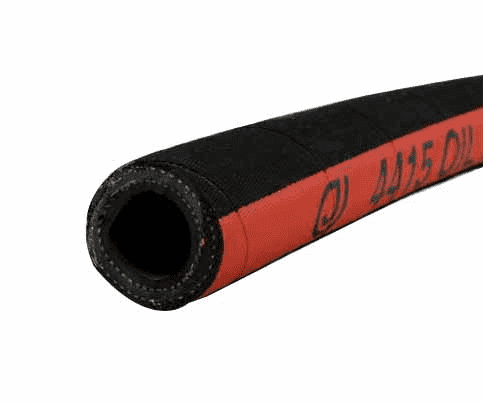

5040-20 Jason Industrial 5040 Oil Return Hose SAE 100R4 - Black - 200 PSI - 1-1/4" ID - 1.77" OD - (Old Part #: 4415-0125-100) - 100ft

5040-20 by Jason Industrial | 5040 Series | Oil Return Hose SAE 100R4 | 200 PSI | 1-1/4" ID | 1.77" OD | (Old Part #: 4415-0125-100) | Black | 100ft

$716.85

Jason Industrial Inc. Hose - Material Handling Hose - 5040 (Previously 4415) Oil Return Hose SAE 100R4 - Black

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5040-20 Jason \| 100 \|
Series:	5040 Series
Hose Color(s):	Black
Internal Diameter:	1.25in
Outer Diameter:	1.77in
MAWP:	200
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Applicable Specs & Approvals:	SAE 100R4

SPECIFICATIONS

Other Features:
Application:	For oil return lines of hydraulic systems in industrial and agricultural systems	SAE Rating:	SAE 100R4
Other Ratings:	Tube: ARPM Class A Cover: ARPM Class B	Tube:	Nitrile, Black, Smooth, ARPM Class A
Reinforcement:	Two-ply Synthetic Fabric, Wire Helix	Cover:	CR, Black, ARPM Class B
Temperature Range:	-40 deg. F (-40 deg. C) to +212 deg. F (+100 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4415 SAE 100R4 RETURN LINE. Red mylar longitudinal stripe
Cover is resistant to weathering and abrasion ARPM Class A tube is highly oil resistant and will handle petroleum products having an aromatic content of 50% All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
5040-12	3/4"	19.05mm	1.25"	31.75mm	2	300 PSI	20.68 BAR	29.0 inHg	0.45 lb./ft.	0.67 KG/m	4.00"	101.60mm	100ft
5040-16	1"	25.40mm	1.47"	37.34mm	2	250 PSI	17.24 BAR	29.0 inHg	0.50 lb./ft.	0.74 KG/m	4.50"	114.30mm	100ft
5040-20	1-1/4"	31.75mm	1.77"	44.96mm	2	200 PSI	13.79 BAR	29.0 inHg	0.64 lb./ft.	0.95 KG/m	6.00"	152.40mm	100ft
5040-24	1-1/2"	38.10mm	2.05"	52.07mm	2	150 PSI	10.35 BAR	29.0 inHg	0.80 lb./ft.	1.19 KG/m	6.50"	165.10mm	100ft
5040-32	2"	50.80mm	2.51"	63.75mm	2	150 PSI	10.35 BAR	29.0 inHg	0.99 lb./ft.	1.47 KG/m	8.00"	203.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
