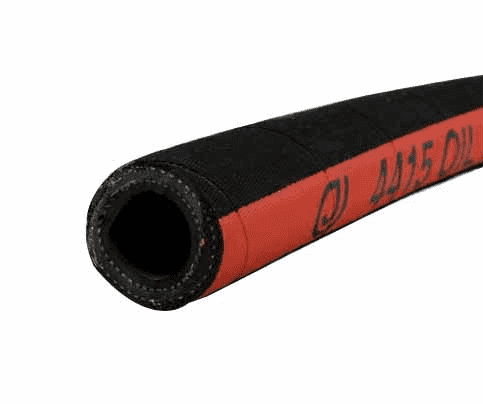

5040-32 Jason Industrial 5040 Oil Return Hose SAE 100R4 - Black - 150 PSI - 2" ID - 2.51" OD - (Old Part #: 4415-0200-100) - 100ft

5040-32 by Jason Industrial | 5040 Series | Oil Return Hose SAE 100R4 | 150 PSI | 2" ID | 2.51" OD | (Old Part #: 4415-0200-100) | Black | 100ft

$1,142.03 - $1,142.03
$1,142.03
$1,153.33
$1,153.33 - $1,153.33
$1,153.33

Jason Industrial Inc. Hose - Material Handling Hose - 5040 (Previously 4415) Oil Return Hose SAE 100R4 - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 5040-32 Jason | 100 |
Series: 5040 Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.51in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Applicable Specs & Approvals: SAE 100R4

SPECIFICATIONS

Application: For oil return lines of hydraulic systems in industrial and agricultural systems SAE Rating: SAE 100R4
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Black, Smooth, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Wire Helix Cover: CR, Black, ARPM Class B
Temperature Range: -40 deg. F (-40 deg. C) to +212 deg. F (+100 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4415 SAE 100R4 RETURN LINE. Red mylar longitudinal stripe
Other Features:
  • Cover is resistant to weathering and abrasion
  • ARPM Class A tube is highly oil resistant and will handle petroleum products having an aromatic content of 50%
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
5040-12 3/4" 19.05mm 1.25" 31.75mm 2 300 PSI 20.68 BAR 29.0 inHg 0.45 lb./ft. 0.67 KG/m 4.00" 101.60mm 100ft
5040-16 1" 25.40mm 1.47" 37.34mm 2 250 PSI 17.24 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 4.50" 114.30mm 100ft
5040-20 1-1/4" 31.75mm 1.77" 44.96mm 2 200 PSI 13.79 BAR 29.0 inHg 0.64 lb./ft. 0.95 KG/m 6.00" 152.40mm 100ft
5040-24 1-1/2" 38.10mm 2.05" 52.07mm 2 150 PSI 10.35 BAR 29.0 inHg 0.80 lb./ft. 1.19 KG/m 6.50" 165.10mm 100ft
5040-32 2" 50.80mm 2.51" 63.75mm 2 150 PSI 10.35 BAR 29.0 inHg 0.99 lb./ft. 1.47 KG/m 8.00" 203.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
