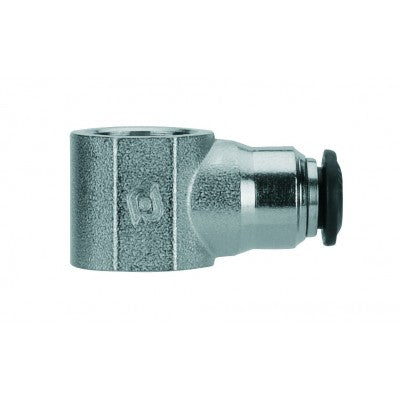

50500N-6-M6 AIGNEP | 50N Series | Single Banjo Body Metric | 6mm Tube x M6 | Pack of 10
50500N-6-M6 by AIGNEP | 50N Series | Single Banjo Body Metric | 6mm Tube x M6 | Pack of 10
50500N-6-M6 AIGNEP | 50N Series | Single Banjo Body Metric | 6mm Tube x M6 | Pack of 10

50500N-6-M6 by AIGNEP | 50N Series | Single Banjo Body Metric | 6mm Tube x M6 | Pack of 10

Save $17.87 Save $17.87
$44.40
$44.40 - $44.40
$44.40
$26.53
$26.53 - $26.53
$26.53

Package Quantity: 10 ea

Specifications for Variant SKU: 50500N-6-M6 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass

Single Banjo Body Metric

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Product Number Tube A B (IN) B L CH
50500N-3-M5 3 mm M5 0.492" 12.5 mm 19 mm -
50500N-3-M6 3 mm M6 0.492" 12.5 mm 19 mm -
50500N-4-M5 4 mm M5 0.492" 12.5 mm 19 mm -
50500N-4-M6 4 mm M6 0.492" 12.5 mm 19 mm -
50500N-4-1/8 4 mm 1/8" 0.590" 15 mm 21 mm 14 mm
50500N-5-M5 5 mm M5 0.492" 12.5 mm 20 mm -
50500N-5-M6 5 mm M6 0.492" 12.5 mm 20 mm -
50500N-5-1/8 5 mm 1/8" 0.590" 15 mm 21.5 mm 14 mm
50500N-5-1/4 5 mm 1/4" 0.699" 17 mm 24.5 mm 18 mm
50500N-6-M5 6 mm M5 0.492" 12.5 mm 20.5 mm -
50500N-6-M6 6 mm M6 0.492" 12.5 mm 20.5 mm -
50500N-6-1/8 6 mm 1/8" 0.590" 15 mm 22 mm 14 mm
50500N-6-1/4 6 mm 1/4" 0.699" 17 mm 25 mm 18 mm
50500N-8-1/8 8 mm 1/8" 0.590" 15 mm 24 mm 14 mm
50500N-8-1/4 8 mm 1/4" 0.699" 17 mm 26 mm 18 mm
50500N-8-3/8 8 mm 3/8" 0.787" 20 mm 28 mm 21 mm
50500N-10-1/4 10 mm 1/4" 0.699" 17 mm 29 mm 18 mm
50500N-10-3/8 10 mm 3/8" 0.787" 20 mm 30.5 mm 21 mm
50500N-12-3/8 12 mm 3/8" 0.787" 20 mm 32.5 mm 21 mm
50500N-12-1/2 12 mm 1/2" 0.945" 24 mm 35 mm 25 mm
50500N-14-1/2 14 mm 1/2" 0.945" 24 mm 35.5 mm 25 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
