50524 (120HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 12" Size | Aluminum

Name: 50524 (120HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 12" Size | Aluminum
Brand: PT-Coupling
SKU: 50524 PT-Coupling
Price: 200.97 USD
Availability: InStock

Save $118.65

$319.62

$319.62 - $319.62

$319.62

$200.97

$200.97 - $200.97

$200.97

PT Coupling
Lay-flat Fluid Transfer System | HD2 Segmented Bolt Clamp/p>

PT COUPLING's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid.

Made in the USA.

Specifications for Variant SKU: 50524 PT-Coupling
Material(s):	Aluminum

Overview:

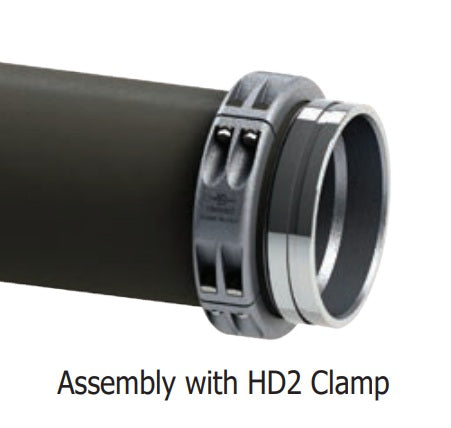

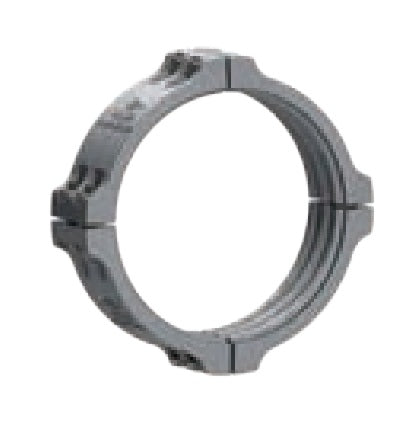

PT COUPLING COMPANY's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid. These aluminum products utilized Victaulic® groove connections and HD2 hose shanks. The lay-flat hose is connected to the HD2 bodies by use of segmented bolt clamps or grooved crimp sleeves. HD2 System parts are available in 6 inch through 12 inch sizes. PT USA has developed new fittings for 6", 8", 10" & 12" lay-flat hose to be used in the fracking industry for water delivery. Fittings are field serviceable
Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Size	Number of Sections
60HD2	50561	6"	3
80HD2	50510	8"	4
100HD2	50511	10"	4
120HD2	50524	12"	5

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
