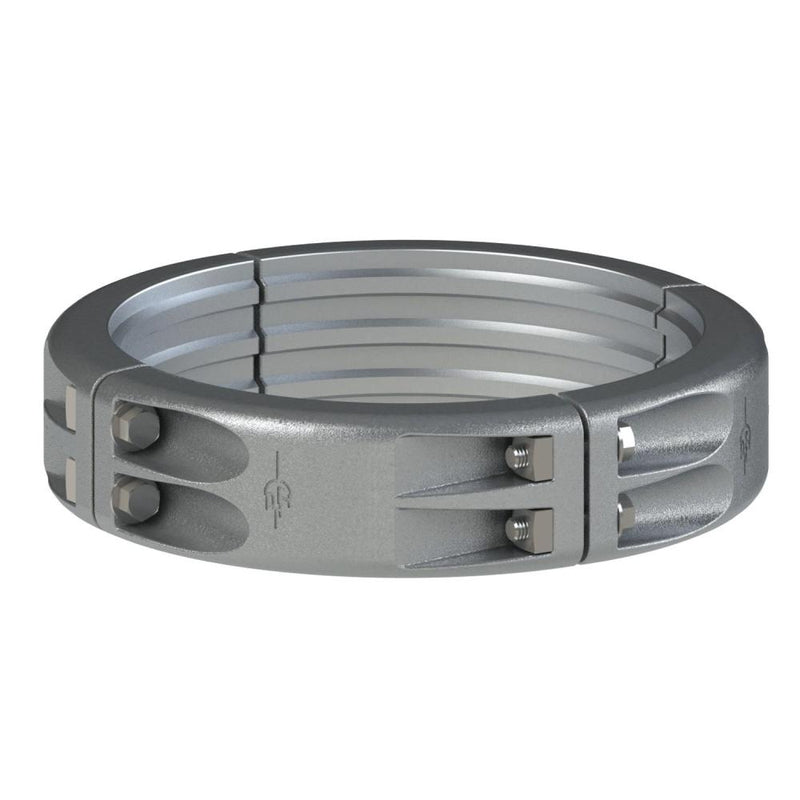

50561 (60HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 6" Size | Aluminum
50561 (60HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 6" Size | Aluminum
50561 (60HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 6" Size | Aluminum

50561 (60HD2 Clamp Assembly) by PT-Coupling | Lay-Flat Fluid Transfer HD2 Segmented Bolt Clamp | 6" Size | Aluminum

Save $68.55 Save $68.55
$184.68
$184.68 - $184.68
$184.68
$116.13
$116.13 - $116.13
$116.13

PT Coupling
Lay-flat Fluid Transfer System | HD2 Segmented Bolt Clamp/p>

PT COUPLING's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid.

Made in the USA.
Specifications for Variant SKU: 50561 PT-Coupling
Material(s): Aluminum
Overview:

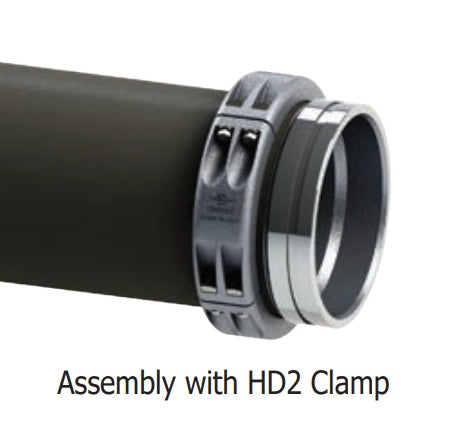

  • PT COUPLING COMPANY's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid. These aluminum products utilized Victaulic® groove connections and HD2 hose shanks. The lay-flat hose is connected to the HD2 bodies by use of segmented bolt clamps or grooved crimp sleeves. HD2 System parts are available in 6 inch through 12 inch sizes.
  • PT USA has developed new fittings for 6", 8", 10" & 12" lay-flat hose to be used in the fracking industry for water delivery.
  • Fittings are field serviceable
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size Number of Sections
60HD2 50561 6" 3
80HD2 50510 8" 4
100HD2 50511 10" 4
120HD2 50524 12" 5

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
