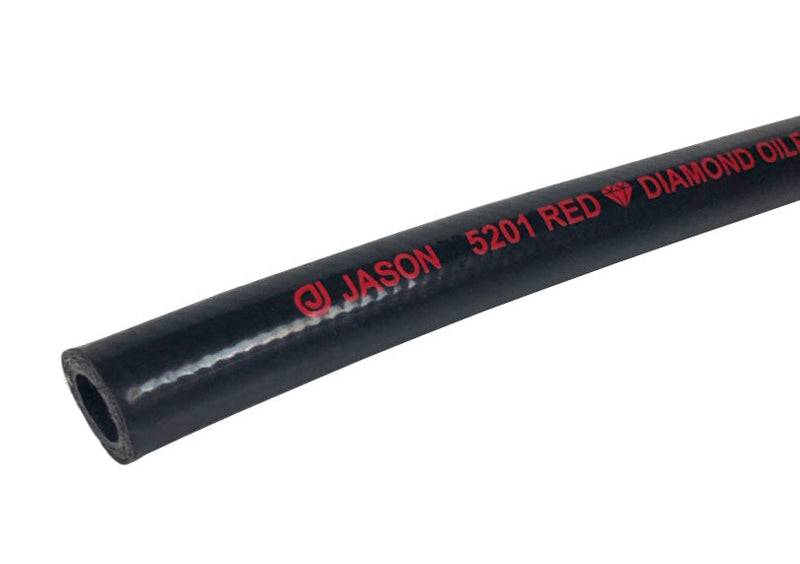

5201-08-500 by Jason Industrial | 5201 Series | Red Diamond Oil Field Special 5K Hose | 1/2" ID | 0.80" OD | 5000 PSI | Black | 500ft

Save $607.89

$1,772.13

$1,772.13 - $1,772.13

$1,772.13

$1,164.24

$1,164.24 - $1,164.24

$1,164.24

Jason Industrial
5201 Series | Red Diamond Oil Field Special 5K Hose | Black

This hose has multiple applications where a 5,000 PSI working pressure and a 4:1 safety factor are required.

One use in the oilfield is for the charging circuit for accumulators attached to the BOP systems.

Package Quantity: 500 FT

Specifications for Variant SKU: 5201-08-500 Jason \| 500 \|
Series:	5201 Series
Hose Color(s):	Black
Internal Diameter:	0.50in
Outer Diameter:	0.80in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

Petroleum Hose

Jason Industrial | 5201 Series
Red Diamond Oil Field Special 5K Hose

1

What is this product used for?

This hose has multiple applications where a 5,000 PSI working pressure and a 4:1 safety factor are required.
One use in the oilfield is for the charging circuit for accumulators attached to the BOP systems.

2

What are the key specifications?

Tube

Oil Resistant Synthetic Rubber

Cover

Synthetic Rubber, Smooth, Abrasion, Ozone, Oil and Weather Resistant

Reinforcement

Two Wire Braid of High Tensile Steel Wire

Temperature Range

-40°F (-40°C) to +212°F (+100°C)

Colors

Black

Branding

Jason logo 5201 Red Diamond Oilfield Special 5K Hose 1/2” (12.7mm) I.D. 5000 PSI 345 BAR) WP Flame Resistant MSHA code Clear mylar stripe with red printing

Specifications

N/A

Design Factor

4:1

3

What are the main product features?

Abrasion, ozone and weather resistant cover.
Extremely flexible.
Can be used in a variety of applications.
Red Diamond® quality.
Use the JB12/12 series hydraulic couplings when making assemblies..

4

Which sizes or configurations are available?

Part Number 500ft	ID		OD		Reinfor- cement	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Minimum Bend Radius
Part Number 500ft	in	mm	in	mm	Reinfor- cement	PSI	BAR	in of Hg	Weight (lbs/ft)	in	mm
5201-08-500	1/2"	12.70mm	0.80"	20.30mm	2	5000 PSI	345 BAR	—	0.36lbs	3.15"	80.00mm

i

No by the foot sales. This is a Packaged Length product.
