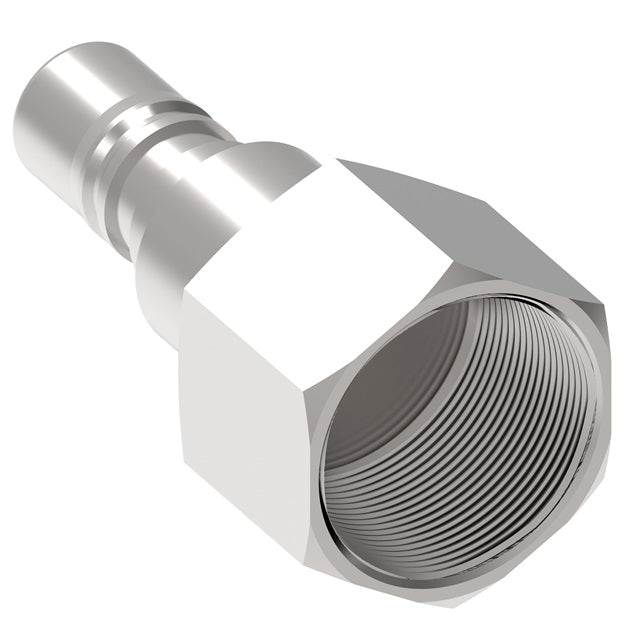

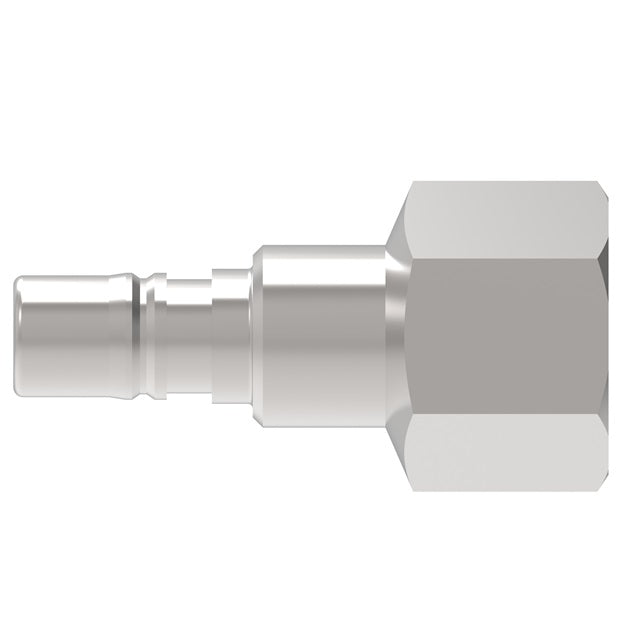

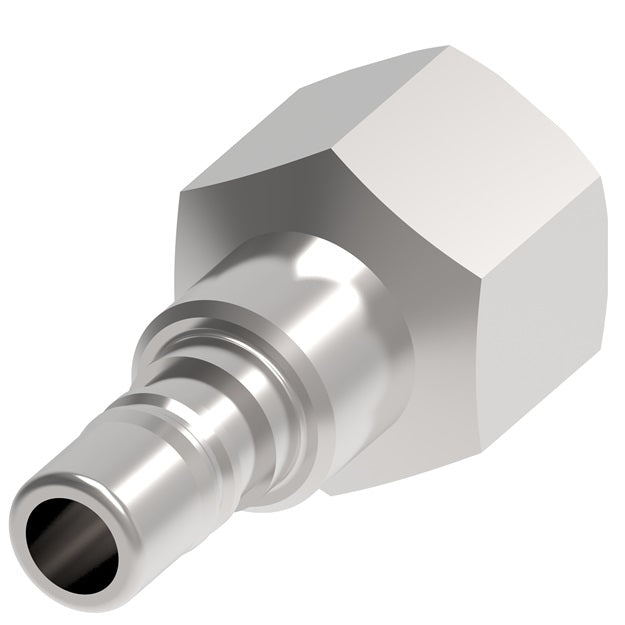

53 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/8" Female NPTF x 1/2" Body Size | Plug | Steel
53 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/8" Female NPTF x 1/2" Body Size | Plug | Steel
53 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/8" Female NPTF x 1/2" Body Size | Plug | Steel
53 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/8" Female NPTF x 1/2" Body Size | Plug | Steel

53 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | 3/8" Female NPTF x 1/2" Body Size | Plug | Steel

$13.40 - $13.40
$13.40
$13.40 - $13.40
$13.40

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 500 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 53 Danfoss
Brand: Hansen
Series: 500 Series / 5000 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
500 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,038 lpm 538 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
500 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
500A Socket/Female 1/2 " 1/4" 1/4-18 Female NPTF Brass 1 2.72"
(69.1mm)		 1.19"
(30.2mm)		 1.00"
(25.4mm)
500 Socket/Female 1/2" 3/8" 3/8-18 Female NPTF Brass 1 2.78"
(70.6mm)		 1.19"
(30.2mm)		 1.00"
(25.4mm)
520 Socket/Female 1/2" 1/2" 1/2-14 Female NPTF Brass 1 3.06"
(77.7mm)		 1.19"
(30.2mm)		 1.00"
(25.4mm)
540 Socket/Female 1/2" 3/4" 3/4-14 Female NPTF Brass 1 3.09"
(78.5mm)		 1.19"
(30.2mm)		 1.19"
(30.2mm)
500 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
53A Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 1.92"
(48.8mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
53 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.06"
(52.3mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
53G** Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.90"
(73.7mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
55 Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.34"
(59.4mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
57 Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 2.44"
(62.0mm)		 1.37"
(34.8mm)		 1.19"
(30.2mm)

** With Bleeder Ball Check - Reduces Hose Whip.
