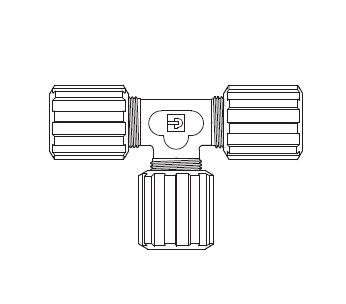

5326216 PURELOC® by NewAge | PFA Compression Fitting | Union Tee | 1/2" Tube OD

5326216 PURELOC® by NewAge | PFA Compression Fitting | Union Tee | 1/2" Tube OD

$93.02 - $93.02
$93.02
$102.11
$102.11 - $102.11
$102.11

PRODUCT DESCRIPTION

NewAge Industries - PURELOC® PFA Compression Fittings - Union Tee
Specifications for Variant SKU: 5326216 NewAge
Brand: PURELOC
Shape (Orientation): Tee
Ends Configuration: 1/2in Tube Compression, 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s): PFA
Features:
  • PFA body made from virgin, high purity materials
  • Ideally suited for corrosive environments and chemical applications
  • Less surface particulate resulting in cleaner operation
  • Easy to disconnect and reuse
  • Excellent lock and seal ability
  • Numerous configurations available
  • Made in the USA
Assembly Instructions:
  • 1. Cut tubing (A) cleanly at 90°.
  • 2.Push tubing through small end of nut (B), gripper (C), ferrule (D), and seat the tubing end into the fitting body as far as it will go (E).
  • 3.Thread the nut onto the body and finger tighten while assuring that tubing remains seated in bottom of fitting. To complete the installation, tighten nut with a wrench at least one additional turn. Avoid overtightening.
Notes:
  • With a fitting body made from virgin, high purity PFA fluoropolymer, PURELOC is ideal for ultra-pure fluid applications where contamination-free systems are used. This includes semiconductor manufacturing, food and beverage processing, medical and biomedical, laboratory, chromatography equipment, and the chemical industries.
  • The gripper coupled with the precision-made ferrule provides excellent leak-tight connections and prevents tubing blow-out.
  • Materials of Construction:
    Wetted: PFA body, PTFE ferrule Non-wetted: PFA nut, titanate filled ETFE gripper
  • Pressure Ranges:
    125 PSIG (8.6 bar)

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Size Recommendations
Fitting Size Recommended Tubing Size
1/8" 1/8" O.D. x 1/16" I.D.
1/4" 1/4" O.D. x 5/32" I.D.
3/8" 3/8" O.D. x 1/4" I.D.
1/2" 1/2" O.D. x 3/8" I.D.
3/4" 3/4" O.D. x 5/8" I.D.

These sizes represent the only fluoropolymer tubing dimensions recommended for use with Pureloc fittings.

Part Number Dimensions (Tube OD)
5326160 1/4"
5326216 1/2"
5326244 3/4"
