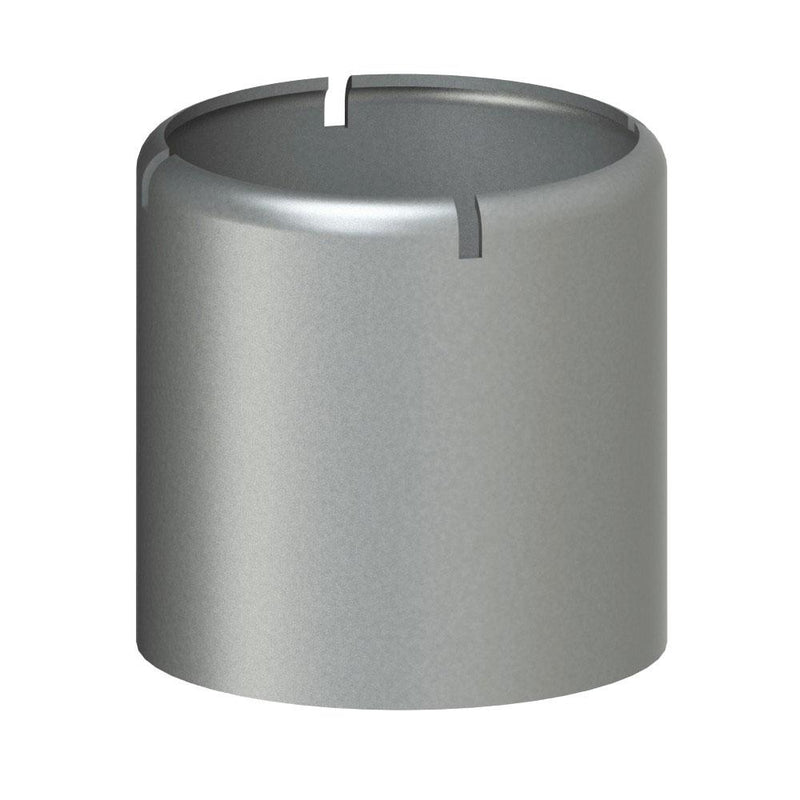

54115208 (15208C50SS) PROGRIP™ by PT-Coupling | Type C50SS | C50 External Crimp System | 1-1/2" Crimp Ferrule | 2.250" Ferrule ID | 304 Stainless Steel

54115208 (15208C50SS) PROGRIP™ by PT-Coupling | Type C50SS | C50 External Crimp System | 1-1/2" Crimp Ferrule | 2.250" Ferrule ID | 304 Stainless Steel

Save $5.52 Save $5.52
$14.88
$14.88 - $14.88
$14.88
$9.36
$9.36 - $9.36
$9.36

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50SS | Crimp Ferrule | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 54115208 PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
For use with:
  • C50 External Crimp System
Part
Name		 Item # Size Ferrule ID
05028C50SS 54105028 1/2" 0.875"
05030C50SS 54105030 1/2" 0.938"
05100C50SS 54105100 1/2" 1.000"
05102C50SS 54105102 1/2" 1.063"

07102C50SS 54107102 3/4" 1.063"
07104C50SS 54107104 3/4" 1.125"
07106C50SS 54107106 3/4" 1.188"
07108C50SS 54107108 3/4" 1.250"
07110C50SS 54107110 3/4" 1.313"
07112C50SS 54107112 3/4" 1.375"

10114C50SS 54110114 1" 1.438"
10116C50SS 54110116 1" 1.500"
10118C50SS 54110118 1" 1.563"
10120C50SS 54110120 1" 1.625"
10122C50SS 54110122 1" 1.688"
10124C50SS 54110124 1" 1.750"
10126C50SS 54110126 1" 1.813"
10128C50SS 54110128 1" 1.875"

12122C50SS 54112122 1-1/4" 1.688"
12124C50SS 54112124 1-1/4" 1.750"
12126C50SS 54112126 1-1/4" 1.813"
12128C50SS 54112128 1-1/4" 1.875"
12130C50SS 54112130 1-1/4" 1.938"

15128C50SS 54115128 1-1/2" 1.875"
15130C50SS 54115130 1-1/2" 1.938"
15200C50SS 54115200 1-1/2" 2.000"
15202C50SS 54115202 1-1/2" 2.063"
15204C50SS 54115204 1-1/2" 2.125"
15206C50SS 54115206 1-1/2" 2.188"
15208C50SS 54115208 1-1/2" 2.250"
15210C50SS 54115210 1-1/2" 2.313"
15212C50SS 54115212 1-1/2" 2.375"
15214C50SS 54115214 1-1/2" 2.438"

20214C50SS 54120214 2" 2.438"
20216C50SS 54120216 2" 2.500"
20218C50SS 54120218 2" 2.563"
20220C50SS 54120220 2" 2.625"
20222C50SS 54120222 2" 2.688"
20224C50SS 54120224 2" 2.750"
20226C50SS 54120226 2" 2.813"
20228C50SS 54120228 2" 2.875"
20230C50SS 54120230 2" 2.938"
20300C50SS 54120300 2" 3.000"
20302C50SS 54120302 2" 3.063"

25230C50SS 54125230 2-1/2" 2.938"
25300C50SS 54125300 2-1/2" 3.000"
25302C50SS 54125302 2-1/2" 3.063"
25304C50SS 54125304 2-1/2" 3.125"
25306C50SS 54125306 2-1/2" 3.188"
25308C50SS 54125308 2-1/2" 3.250"
25310C50SS 54125310 2-1/2" 3.313"
25312C50SS 54125312 2-1/2" 3.375"
25316C50SS 54125316 2-1/2" 3.500"
25318C50SS 54125318 2-1/2" 3.563"

30316C50SS 54130316 3" 3.500"
30318C50SS 54130318 3" 3.563"
30320C50SS 54130320 3" 3.625"
30322C50SS 54130322 3" 3.688"
30324C50SS 54130324 3" 3.750"
30326C50SS 54130326 3" 3.813"
30328C50SS 54130328 3" 3.875"
30330C50SS 54130330 3" 3.938"
30400C50SS 54130400 3" 4.000"
30402C50SS 54130402 3" 4.063"
30404C50SS 54130404 3" 4.125"
30406C50SS 54130406 3" 4.188"

40416C50SS 54140416 4" 4.500"
40418C50SS 54140418 4" 4.563"
40420C50SS 54140420 4" 4.625"
40422C50SS 54140422 4" 4.688"
40424C50SS 54140424 4" 4.750"
40426C50SS 54140426 4" 4.813"
40428C50SS 54140428 4" 4.875"
40430C50SS 54140430 4" 4.938"
40500C50SS 54140500 4" 5.000"
40502C50SS 54140502 4" 5.063"
40508C50SS 54140508 4" 5.250"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
