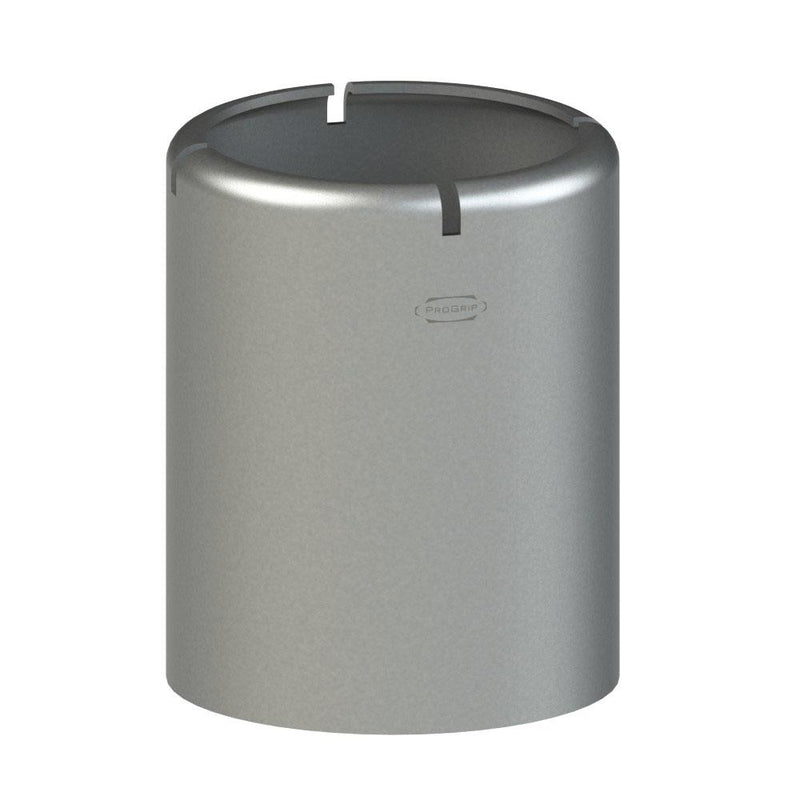

54130330L (30330WSS) PROGRIP™ by PT-Coupling | Type WSS | Sanitary Wine C50 Crimp System | 3" Crimp Ferrule | 3.938" Ferrule ID | 304 Stainless Steel

Save $23.96

$64.55

$64.55 - $64.55

$64.55

$40.59

$40.59 - $40.59

$40.59

PT Coupling
PROGRIP™ | Sanitary Wine C50 Crimp System | Type WSS | Crimp Ferrule | 304 Stainless Steel

Made in the USA.

Specifications for Variant SKU: 54130330L PT-Coupling
Series:	ProGrip C50 Crimp System
Shape (Orientation):	Straight
Material(s):	304 Stainless Steel

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Size	Ferrule ID
15206WSS	54115206L	1-1/2"	2.187"

20222WSS	54120222L	2"	2.688"
20224WSS	54120224L	2"	2.750"
20228WSS	54120228L	2"	2.875"

30322WSS	54130322L	3"	3.688"
30324WSS	54130324L	3"	3.750"
30328WSS	54130328L	3"	3.875"
30330WSS	54130330L	3"	3.938"
30400WSS	54130400L	3"	4.000"
30404WSS	54130404L	3"	4.125"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
