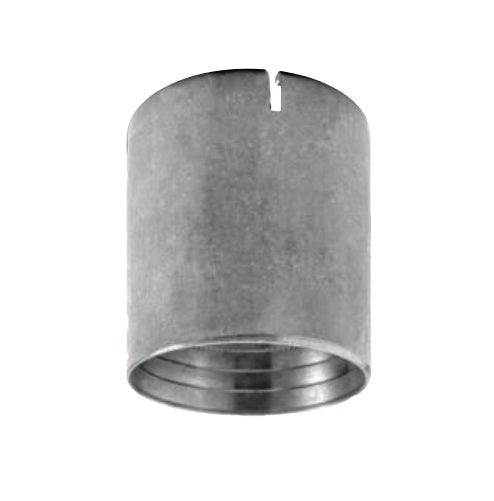

54140424H (40424C50HDSS) PROGRIP™ by PT-Coupling | Type C50HD | C50 External Crimp System | 4" Heavy Duty Crimp Ferrule | 4.750" Ferrule ID | 304 Stainless Steel

54140424H (40424C50HDSS) PROGRIP™ by PT-Coupling | Type C50HD | C50 External Crimp System | 4" Heavy Duty Crimp Ferrule | 4.750" Ferrule ID | 304 Stainless Steel

Save $45.16 Save $45.16
$121.65
$121.65 - $121.65
$121.65
$76.49
$76.49 - $76.49
$76.49

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50HD | Heavy Duty Crimp Ferrule | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 54140424H PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
For use with:
  • C50 External Crimp System.
Part
Name		 Item # Size Ferrule ID
40424C50HDSS 54140424H 4" 4.750"
40428C50HDSS 54140428H 4" 4.875"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
