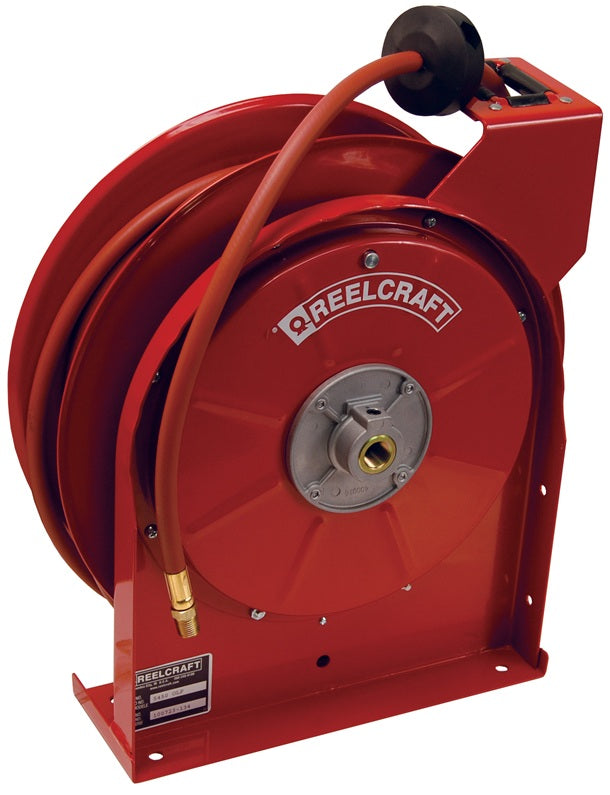

5450LP by Dixon Valve | Reelcraft® 5000 Series | Spring Driven Hose Reel - with Hose | 1/4" Hose ID | 50ft Hose Length | Steel

Save $380.10

$950.25

$950.25 - $950.25

$950.25

$570.15

$570.15 - $570.15

$570.15

Dixon Valve
Reelcraft® 5000 Series | Spring Driven Hose Reel

Specifications for Variant SKU: 5450LP Dixon
Brand:	Reelcraft
Series:	5000 Series

Applications:
Air, Water
Construction:
Reel inlet 3/8" NPTF All steel construction Full shaft and swivel Supplied standard with PVC hose
Safety Note:
Compressed air hose should not be converted to oxygen service. Compressed air hoses are often contaminated with an oil coating, which can react explosively when oxygen is introduced.
Specifications:
Maximum temperature 150°F (66°C)

Reel with Hose
Part Number	Hose I.D.	Hose Length	Service	Working Pressure PSI @70°F
5450LP	1/4"	50ft	Air / Water	300 PSI
5635LP	3/8"	35ft	Air / Water	300 PSI
5650LP	3/8"	50ft	Air / Water	300 PSI

Reel without Hose
Part Number	Hose Capacity	Service	Working Pressure PSI @70°F
5600LP	50ft of 1/4" or 35ft of 3/8"	Air / Water	500 PSI
5605LP	50ft of 3/8"	Air / Water	500 PSI
