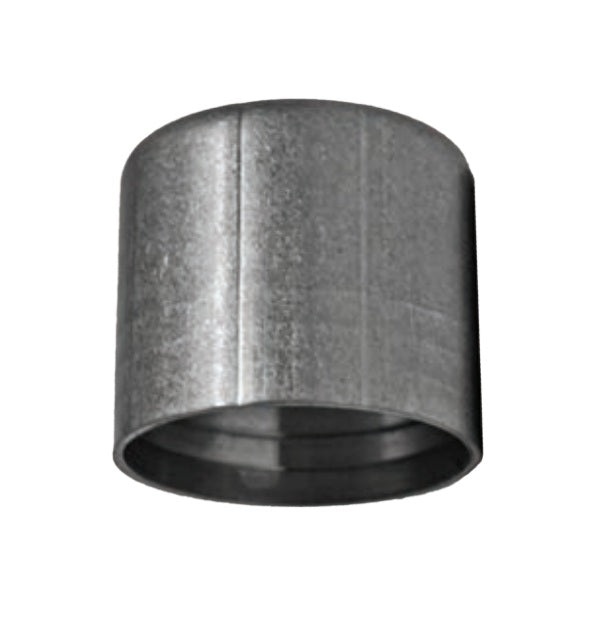

54515208 (15208PMSS) PROGRIP™ by PT-Coupling | Type PMSS | PM Internal Expansion System | 1-1/2" Crimp Ferrule | 2.250" Ferrule ID | 304 Stainless Steel

54515208 (15208PMSS) PROGRIP™ by PT-Coupling | Type PMSS | PM Internal Expansion System | 1-1/2" Crimp Ferrule | 2.250" Ferrule ID | 304 Stainless Steel

Save $6.67 Save $6.67
$17.98
$17.98 - $17.98
$17.98
$11.31
$11.31 - $11.31
$11.31

PT Coupling
PROGRIP™ | PM Internal Expansion System - Industrial | Type PMSS | Crimp Ferrule | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 54515208 PT-Coupling
Series: ProGrip PM Internal Expansion System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Designed to be used with PMSS Pull Mandrel bodies (Internal Expanded Stainless Steel bodies).
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Ferrule ID
10116PMSS 54510116 1" 1.500"

12124PMSS 54512124 1-1/4" 1.750"
12126PMSS 54512126 1-1/4" 1.813"

15202PMSS 54515202 1-1/2" 2.063"
15204PMSS 54515204 1-1/2" 2.125"
15206PMSS 54515206 1-1/2" 2.188"
15208PMSS 54515208 1-1/2" 2.250"

20212PMSS 54520212 2" 2.375"
20216PMSS 54520216 2" 2.500"
20218PMSS 54520218 2" 2.563"
20220PMSS 54520220 2" 2.625"
20222PMSS 54520222 2" 2.688"
20224PMSS 54520224 2" 2.750"

25304PMSS 54525304 2-1/2" 3.125"
25306PMSS 54525306 2-1/2" 3.188"
25308PMSS 54525308 2-1/2" 3.250"

30318PMSS 54530318 3" 3.563"
30322PMSS 54530322 3" 3.688"
30324PMSS 54530324 3" 3.750"
30328PMSS 54530328 3" 3.875"

40430PMSS 54540430 4" 4.938"

*The above pressure ratings are for the fitting itself. There ar e several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assemble r and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
