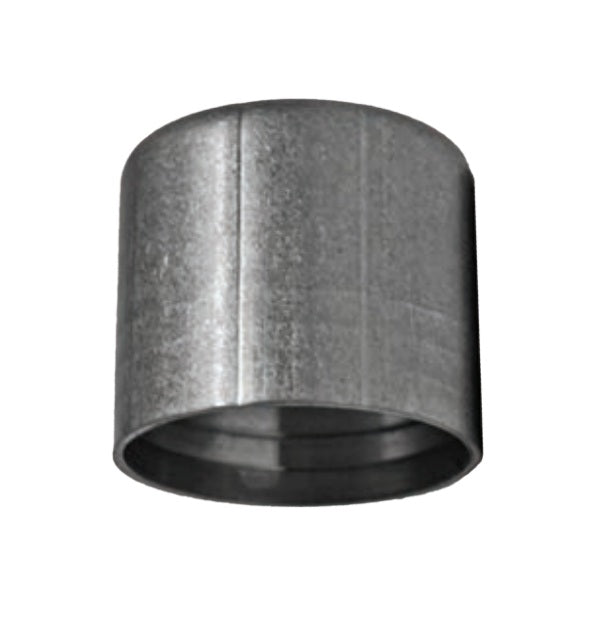

54540430 (40430PMSS) PROGRIP™ by PT-Coupling | Type PMSS | PM Internal Expansion System | 4" Crimp Ferrule | 4.938" Ferrule ID | 304 Stainless Steel

Save $27.78

$74.85

$74.85 - $74.85

$74.85

$47.07

$47.07 - $47.07

$47.07

PT Coupling
PROGRIP™ | PM Internal Expansion System - Industrial | Type PMSS | Crimp Ferrule | 304 Stainless Steel

Made in the USA.

Specifications for Variant SKU: 54540430 PT-Coupling
Series:	ProGrip PM Internal Expansion System
Shape (Orientation):	Straight
Material(s):	304 Stainless Steel

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Designed to be used with PMSS Pull Mandrel bodies (Internal Expanded Stainless Steel bodies). Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Size	Ferrule ID
10116PMSS	54510116	1"	1.500"

12124PMSS	54512124	1-1/4"	1.750"
12126PMSS	54512126	1-1/4"	1.813"

15202PMSS	54515202	1-1/2"	2.063"
15204PMSS	54515204	1-1/2"	2.125"
15206PMSS	54515206	1-1/2"	2.188"
15208PMSS	54515208	1-1/2"	2.250"

20212PMSS	54520212	2"	2.375"
20216PMSS	54520216	2"	2.500"
20218PMSS	54520218	2"	2.563"
20220PMSS	54520220	2"	2.625"
20222PMSS	54520222	2"	2.688"
20224PMSS	54520224	2"	2.750"

25304PMSS	54525304	2-1/2"	3.125"
25306PMSS	54525306	2-1/2"	3.188"
25308PMSS	54525308	2-1/2"	3.250"

30318PMSS	54530318	3"	3.563"
30322PMSS	54530322	3"	3.688"
30324PMSS	54530324	3"	3.750"
30328PMSS	54530328	3"	3.875"

40430PMSS	54540430	4"	4.938"

*The above pressure ratings are for the fitting itself. There ar e several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assemble r and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
