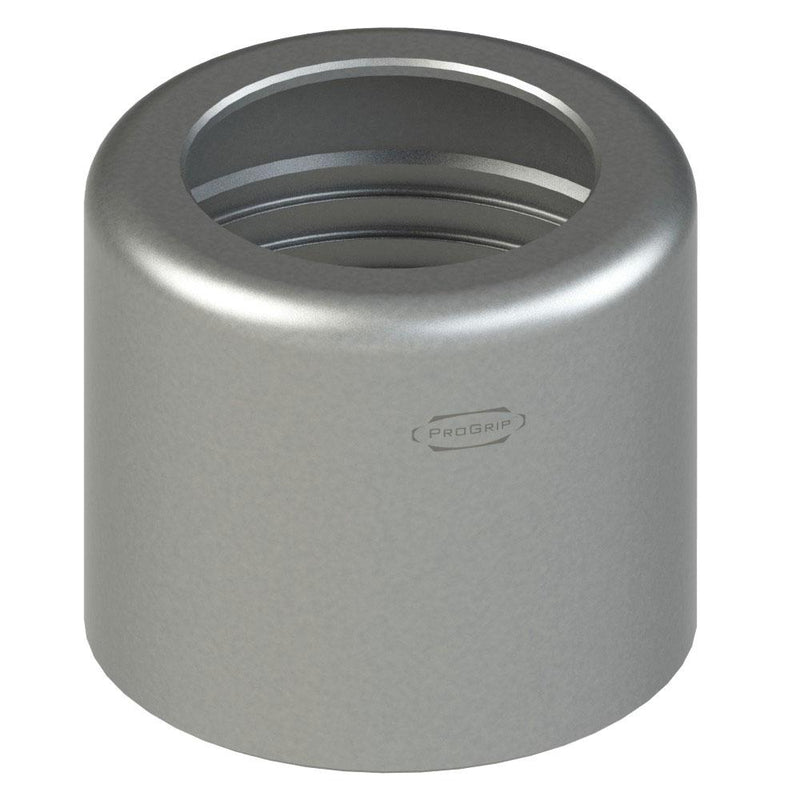

54730316 (30316SE) PROGRIP™ by PT-Coupling | Type SE | Sanitary SE Internal Expansion System | 3" Sanitary Ferrule | 3.500" Ferrule ID | 304 Stainless Steel

54730316 (30316SE) PROGRIP™ by PT-Coupling | Type SE | Sanitary SE Internal Expansion System | 3" Sanitary Ferrule | 3.500" Ferrule ID | 304 Stainless Steel

Save $56.38 Save $56.38
$151.87
$151.87 - $151.87
$151.87
$95.49
$95.49 - $95.49
$95.49

PT Coupling
PROGRIP™ | Type SE | Sanitary SE Internal Expansion System | Sanitary Ferrule | 304 Stainless Steel
Specifications for Variant SKU: 54730316 PT-Coupling
Series: ProGrip SE Internal Expansion System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Designed to be used with Pull Mandrel (PM) or SE Sanitary Bodies (Internal Sanitary Expansion).
  • Cannot be used in place of SFC50.
  • Made in the USA
Part
Name		 Item # Size Ferrule ID
(in.)
10116SE 54710116 1" 1.500"

15200SE 54715200 1-1/2" 2.000"
15202SE 54715202 1-1/2" 2.063"
15204SE 54715204 1-1/2" 2.125"
15208SE 54715208 1-1/2" 2.250"
15210SE 54715210 1-1/2" 2.213"

20218SE 54720218 2" 2.563"
20220SE 54720220 2" 2.625"
20222SE 54720222 2" 2.688"
20224SE 54720224 2" 2.750"
20226SE 54720226 2" 2.812"
20230SE 54720230 2" 2.938"
20300SE 54720300 2" 3.000"

25304SE 54725304 2-1/2" 3.125"
25308SE 54725308 2-1/2" 3.250"
25318SE 54725318 2-1/2" 3.563"

30316SE 54730316 3" 3.500"
30320SE 54730320 3" 3.625"
30326SE 54730326 3" 3.813"
30328SE 54730328 3" 3.875"
30330SE 54730330 3" 3.938"
30404SE 54730404 3" 4.125"

40424SE 54740424 4" 4.750"
40426SE 54740426 4" 4.813"
40428SE 54740428 4" 4.875"
40430SE 54740430 4" 4.938"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
