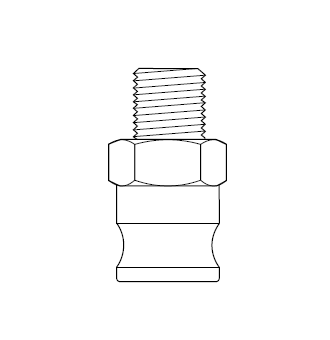

5611900 by NewAge | Cam and Groove Fitting | Type F | Insert x 2" Male NPT | EPDM Seal | Polypropylene

5611900 by NewAge | Cam and Groove Fitting | Type F | Insert x 2" Male NPT | EPDM Seal | Polypropylene

Save $5.12 Save $5.12
$12.80
$12.80 - $12.80
$12.80
$7.68
$7.68 - $7.68
$7.68

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Polypropylene - Type F - Insert x Male MNPT
Specifications for Variant SKU: 5611900 NewAge
Shape (Orientation): Straight
Ends Configuration: 2in Male Cam & Groove, 2in Male NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Similar properties to nylon yet more resistant to most acids than nylon couplings
  • Made to MIL-C-27487 dimensions
  • Made in the USA


  • Material: Glass-fiber reinforced nylon -- black in color
  • Standard Gasket: EPDM
  • Handle: 304L Stainless Steel
  • Pin: 302 Stainless Steel
  • Temperature Range: 10°F to 180°F**
  • Working Pressure**:
    • 3/8" thru 1": 125 psi
    • 1-1/4" thru 2": 100 psi
    • 3": 75 psi
Notes:
  • On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number Dimensions (Thread Size)
5611760 1/2" Male MNPT
5611788 3/4" Male MNPT
5611816 1" Male MNPT
5611872 1-1/2" Male MNPT
5611900 2" Male MNPT
5611928 3" Male MNPT

* Limited stock item; lead times and minimums may apply -- contact support.
