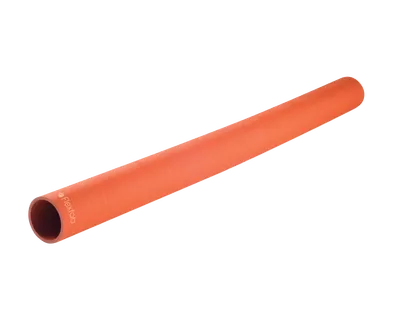

5780-062 by FlexFab | 5780 Series | High Temperature Coolant Hose | 0.63" x 1.02" OD | Silicone | 3ft Length

5780-062 by FlexFab | 5780 Series | High Temperature Coolant Hose | 0.63" x 1.02" OD | Silicone | 3ft Length

Save $5.57 Save $5.57
$50.16
$50.16 - $50.16
$50.16
$44.59
$44.59 - $44.59
$44.59

Flexfab Industrial Hose | Series 5780 | High Temperature Coolant Hose
Specifications for Variant SKU: 5780-062 FlexFab
Series: 5780 Series
Hose Color(s): Orange
Internal Diameter: 0.63in
Outer Diameter: 1.02in
Tubing Construction: Silicone
Cover Construction: Silicone
Applicable Specs & Approvals: SAE J20 R1 H.T.
Benefits:
  • Extreme Temperature Resistance
  • Extreme Duty Cycle Tested for Hostile Engine Environments
  • Pressure Endurance
  • Available in Various Lengths
Specifications:
  • Meets or exceeds SAE J20 R1 H.T.
  • Standard wall thickness available in 3/8” - 2 1/2” diameter
  • Heavy wall thickness available in 2 5/8” - 6” diameter
  • Extreme pressure resistance up to 175 PSIG
Contruction:
  • Silicone
  • Meta-Aramid
  • Available in various standard lengths*
Part Number Part Number (12 Foot Length) Wall Thickness (Min-Max) ID OD Working PSI Burst PSI
5780-038 5780-038X12 0.17" - 0.22" 0.38" 0.77" 175 PSI 600 PSI
5780-050 5780-050X12 0.17" - 0.22" 0.50" 0.89" 175 PSI 600 PSI
5780-062 5780-062X12 0.17" - 0.22" 0.63" 1.02" 175 PSI 575 PSI
5780-075 5780-075X12 0.17" - 0.22" 1.14" 1.14" 175 PSI 575 PSI
5780-087 5780-087X12 0.17" - 0.22" 0.88" 1.27" 150 PSI 550 PSI
5780-100 5780-100X12 0.17" - 0.22" 1" 1.39" 150 PSI 550 PSI
5780-112 - 0.17" - 0.22" 1.13" 1.52" 150 PSI 500 PSI
5780-125 5780-125X12 0.17" - 0.22" 1.25" 1.64" 150 PSI 500 PSI
5780-138 5780-138X12 0.17" - 0.22" 1.38" 1.77" 150 PSI 450 PSI
5780-150 - 0.17" - 0.22" 1.50" 1.89" 150 PSI 450 PSI
5780-175 - 0.17" - 0.22" 1.75" 2.14" 125 PSI 400 PSI
5780-200 5780-200X12 0.17" - 0.22" 2" 2.39" 125 PSI 400 PSI
5780-225 5780-225X12 0.17" - 0.22" 2.25" 2.64" 100 PSI 350 PSI
5780-250 5780-250X12 0.17" - 0.22" 2.50" 2.89" 100 PSI 300 PSI
5780-262 - 0.22" - 0.279" 2.63" 3.13" 80 PSI 275 PSI
5780-275 - 0.22" - 0.279" 2.75" 3.25" 80 PSI 275 PSI
5780-300 - 0.22" - 0.279" 3" 3.50" 80 PSI 250 PSI
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
