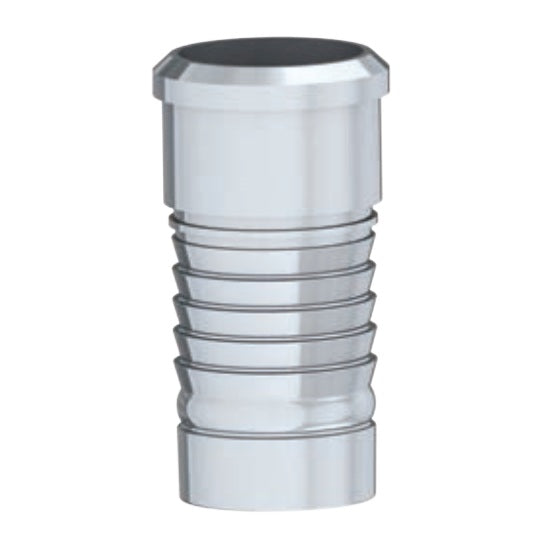

5783010 (30BSFC50X) PROGRIP™ by PT-Coupling | Type BSFC50X | Sanitary C50 Crimp Fitting | 3" Bevel Seat Female Body x 3" Hose Barb | 304 Stainless Steel

5783010 (30BSFC50X) PROGRIP™ by PT-Coupling | Type BSFC50X | Sanitary C50 Crimp Fitting | 3" Bevel Seat Female Body x 3" Hose Barb | 304 Stainless Steel

Save $133.33 Save $133.33
$359.18
$359.18 - $359.18
$359.18
$225.85
$225.85 - $225.85
$225.85

PT Coupling
PROGRIP™ | Sanitary C50 Crimp System | Type BSFC50X | Bevel Seat Female Body x Hose Barb | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 5783010 PT-Coupling
Series: ProGrip C50 Crimp System
Shape (Orientation): Straight
Ends Configuration: 3in Plain Bevel Seat, 3in Hose Barb
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • These bodies are to be used with External Crimp Systems and SFC50 Sanitary Ferrules.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Max. Allowable
Working Press.
(PSI)*
15BSFC50X 5781510 1-1/2" 600 PSI
20BSFC50X 5782010 2" 600 PSI
25BSFC50X 5782510 2-1/2" 600 PSI
30BSFC50X 5783010 3" 600 PSI
40BSFC50X 5784010 4" 500 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org.
