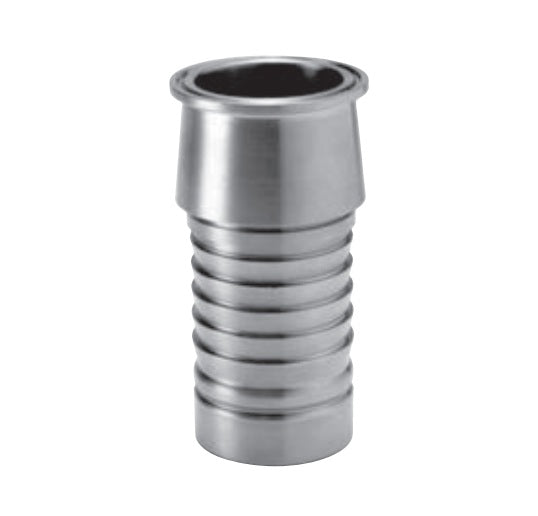

5786009 (60TCC50X) PROGRIP™ by PT-Coupling | Type TCC50X | Sanitary C50 Crimp Fitting | 6" Tri-Clamp Body x 6" Hose Barb | 304 Stainless Steel

5786009 (60TCC50X) PROGRIP™ by PT-Coupling | Type TCC50X | Sanitary C50 Crimp Fitting | 6" Tri-Clamp Body x 6" Hose Barb | 304 Stainless Steel

Save $311.14 Save $311.14
$838.18
$838.18 - $838.18
$838.18
$527.04
$527.04 - $527.04
$527.04

PT Coupling
PROGRIP™ | Sanitary C50 Crimp System | Type TCC50X | Tri-Clamp Body x Hose Barb | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 5786009 PT-Coupling
Series: ProGrip C50 Crimp System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • These bodies are to be used with External Crimp Systems and SFC50 Sanitary Ferrules.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Max. Allowable
Working Press.
(PSI)*
07TCC50X 5780709 3/4" 600 PSI
10TCC50X 5771009C 1" 600 PSI
15TCC50X 5781509 1-1/2" 600 PSI
20TCC50X 5782009 2" 600 PSI
25TCC50X 5782509 2-1/2" 600 PSI
30TCC50X 5783009 3" 600 PSI
40TCC50X 5784009 4" 500 PSI
60TCC50X 5786009 6" 400 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
