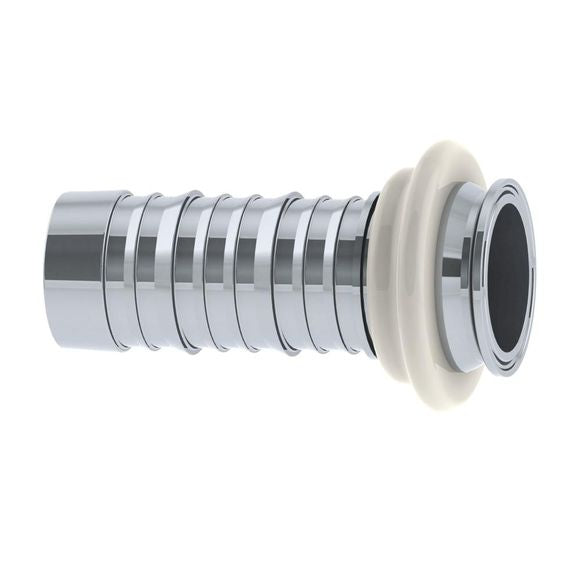

5812009 (20TCWSS) PROGRIP™ by PT-Coupling | Type TCWSS | Sanitary Wine C50 Crimp Fitting with Bumper | 2" Sanitary Tri-Clamp x 2" Hose Shank | 304 Stainless Steel

5812009 (20TCWSS) PROGRIP™ by PT-Coupling | Type TCWSS | Sanitary Wine C50 Crimp Fitting with Bumper | 2" Sanitary Tri-Clamp x 2" Hose Shank | 304 Stainless Steel

Save $89.45 Save $89.45
$241.00
$241.00 - $241.00
$241.00
$151.55
$151.55 - $151.55
$151.55

PT Coupling
PROGRIP™ | Sanitary Wine C50 Crimp Fitting with Bumper | Type TCWSS | Sanitary Tri-Clamp x Hose Shank | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 5812009 PT-Coupling
Series: ProGrip C50 Crimp System
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Hose Barb
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Description
20TCWSS 5812009 2" Body with Bumper

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
