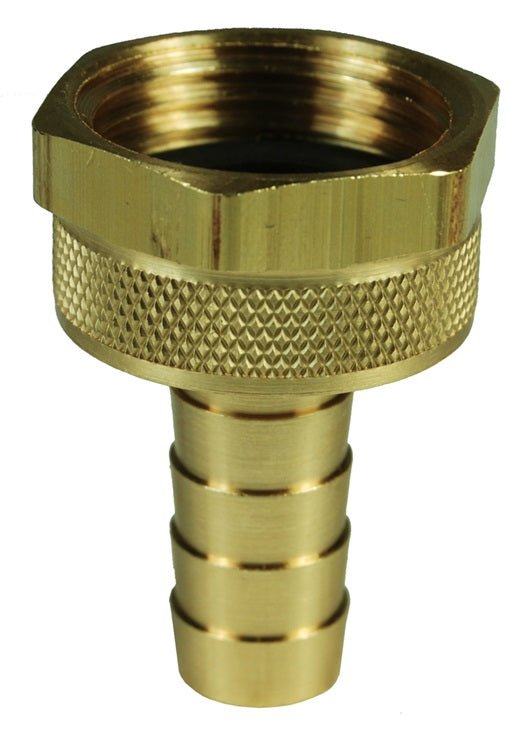

5910812C by Dixon Valve | Standard Shank Fitting | with Swivel Nut | Female Fitting | 3/4" Female GHT x 1/2" Hose ID | Brass

Save $4.56

$8.96

$8.96 - $8.96

$8.96

$4.40

$4.40 - $4.40

$4.40

Dixon Valve
Standard Shank Fitting with Swivel Nut | Female Fitting

Specifications for Variant SKU: 5910812C Dixon
Series:	591 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 3/4in Female GHT
Material(s):	Brass
Seal Material(s):	SBR
Special Properties:	Swivel

Features:
Washer Included
Materials:
Note: For Fittings that are Lead Free Brass: NSF ®/ANSI 61 certified lead-free brass <=0.25% lead, Alloy C2745 and NSF ®/ANSI 61 certified.

Brass		Lead-Free Brass**	303 Stainless Steel		Hose ID	Threads
Part Number	Previous Part Number	Part Number	Part Number	Previous Part Number	Hose ID	Threads
5910612C	BCF73	-	-	-	3/8"	3/4" Female GHT
5910812C	BCF74	5910812CLF	5910812SS	SSCF74	1/2"	3/4" Female GHT
5911012C	BCF75	5911012CLF	5911012SS	SSCF75	5/8"	3/4" Female GHT
5911212C	BCF76	5911212CLF	5911212SS	SSCF76	3/4"	3/4" Female GHT
5911612C	BCF78	-	-	-	1"	3/4" Female GHT
5911616C	BS848	5911616CLF	-	-	1"	1" Female NPSH
